Werner MCMN Cable
MCMN Cable - Solid, Black/Red/Blue, Neutral Color - White/Black Stripe White/Red Stripe White/Blue Stripe, 10/3 x 2, 1000 Feet Spooled
Werner MCMN Cable
MCMN Cable - Solid, Black/Red/Blue, Neutral Color - White/Black Stripe White/Red Stripe White/Blue Stripe, 10/3 x 2, 1000 Feet SpooledNon-stock product. Available to order - lead time may vary.
BrandWerner
MFG #MCMN Cable
Werner Part #4035825
UPC032886079122
Non-stock product. Available to order - lead time may vary.
BrandWerner
MFG #MCMN Cable
Werner Part #4035825
UPC032886079122
Product Description

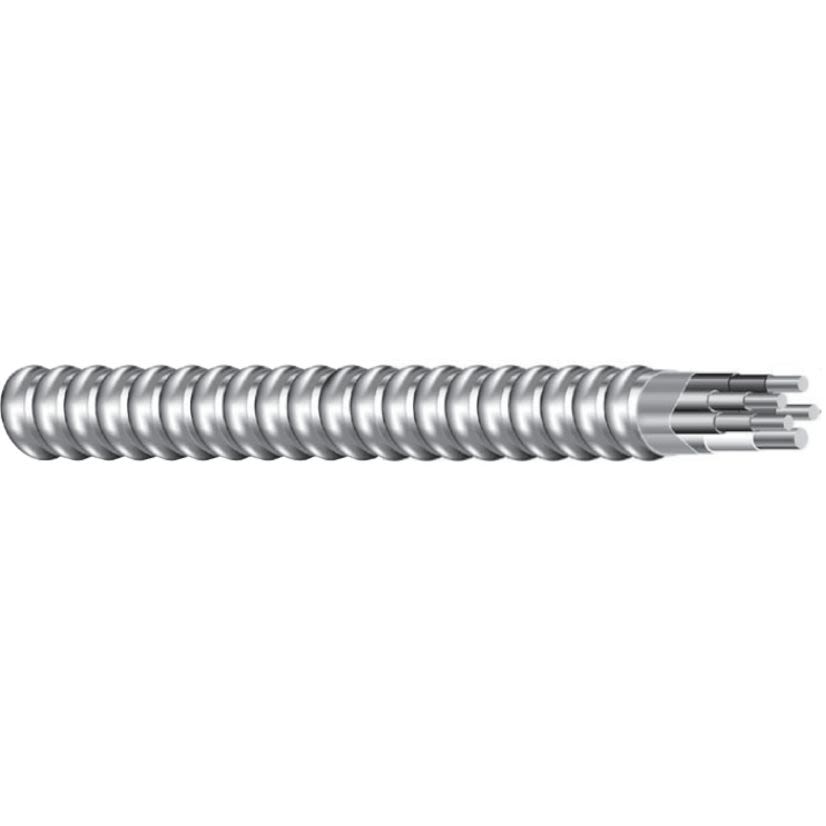

Copper THHN/THWN Insulated Singles. Green Insulated Copper Grounding Conductor. UL Listed. 600 Volts Rated VW-1. Lightweight Aluminum Interlocked Armor. Branch and service power distribution in commercial, industrial, institutional, and multi-residential buildings. Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.Type THHN/THWN is rated 90ĀŗC Dry.
Documents
Features
Specifications
Documents
Features
Applications affected by harmonics generated from non-linear switching loads, such as computers, variable frequency drives, electrical test equipment and office equipmentFished or embedded in plasterConcealed or exposed installationsEnvironmental air-handling spaces per NEC 300.22Places of assembly per NEC 518.4 and theaters per NEC 520.5Installation in cable tray and approved racewaysInstalled under raised floors for information technology equipment conductors and cablesNeutral conductor per phase or multiple oversized neutrals for applications affected by harmonicsReduces installation costs up to 50% over pipe and wireLightweight aluminum armor as much as 45% lighter than steel mc cableCable reverse wound on reel for ease of pulling and installationAnti-short bushings are not required for use with mc cable per the NEC and ULHas one 12 AWG grounding conductor
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 83/1569/1685|Federal Specification A-A59544 (formerly J-C-30B)|NEC, Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems, Jacketed & Non Jacketed will both pass UL Test & FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test
