Southwire 55323002

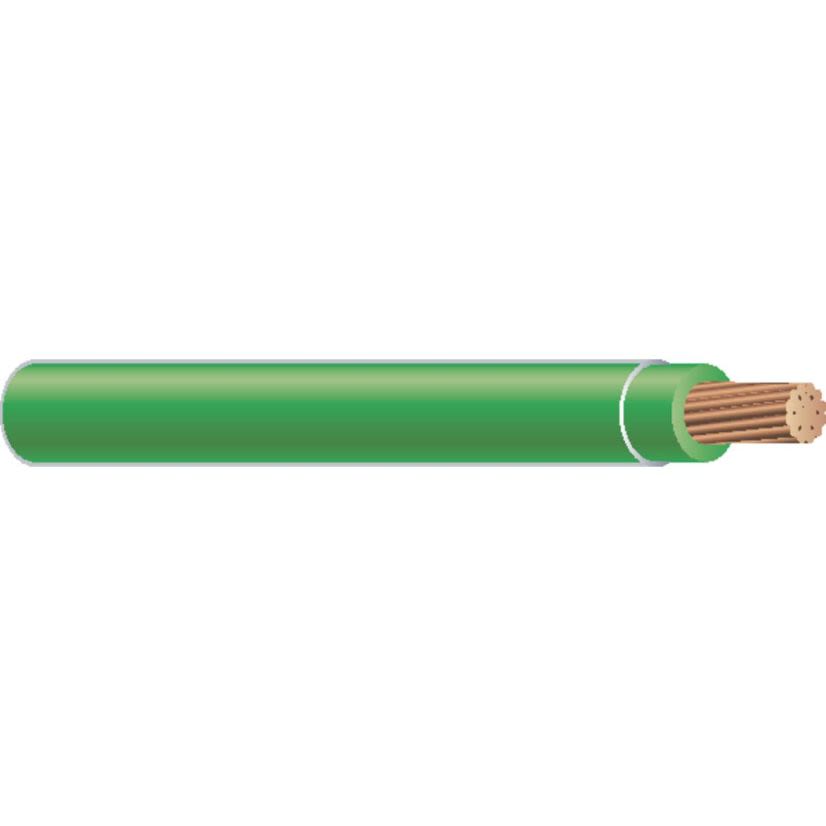

Southwire NoLube SIMpull 55323002 Type XHHW-2 Building Wire, Reel Packaging, 600 V AC, (1) 6 AWG Stranded Copper Conductor, 5000 ft L, Green
Southwire 55323002
Southwire NoLube SIMpull 55323002 Type XHHW-2 Building Wire, Reel Packaging, 600 V AC, (1) 6 AWG Stranded Copper Conductor, 5000 ft L, GreenIn Stock: 22656more info
|
BrandSouthwire
MFG #55323002
Werner Part #3844663
UPC032886079818
In Stock: 22656more info
|
BrandSouthwire
MFG #55323002
Werner Part #3844663
UPC032886079818
Product Description
Southwire NoLube SIMpull Building Wire, Type XHHW-2, Reel Packaging, 600 V AC, 75 A, 1 Conductor, Stranded Copper Conductor, 6 AWG Conductor, 268 mil OD, 5000 ft Length, 7 Strands, Polyethylene Insulation, Polyethylene Jacket, Green Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size6 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPolyethylene
Jacket ColorGREEN
Jacket MaterialPolyethylene
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter268 mil
Package Height40.1 in
Package Length45.1 in
Package TypeEACH
Package Weight1.1 lb
Package Width45.1 in
Strands7
Temperature Rating90 deg C
TypeType XHHW-2
Voltage Rating600 V AC
Applications
For conduit, cable tray or other recognized raceways for services, feeders and branch circuit wiring
Warranty
1 Year
Features
- Sim Technology for easier pulling
Specifications
Standards/Approvals: UL 44, NOM, ANCE Certified|Federal Specification A-A059544, NFPA 70|NEMA WC-70|RoHS Compliant|REACH Compliant|ARRA Compliant|Buy American Act Compliant
