Southwire 40019205

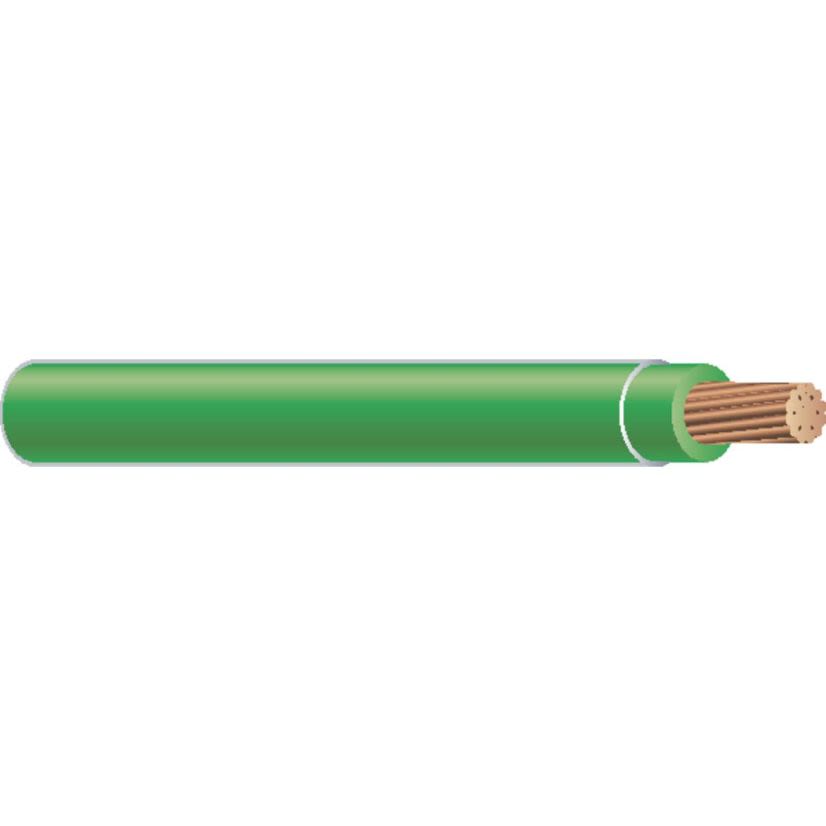

Southwire NoLube SIMpull 40019205 Type THHN/THWN-2/MTW Building Wire, Reel Packaging, 600 V AC, (1) 1 AWG Stranded Copper Conductor, 5000 ft L, Green
Southwire 40019205
Southwire NoLube SIMpull 40019205 Type THHN/THWN-2/MTW Building Wire, Reel Packaging, 600 V AC, (1) 1 AWG Stranded Copper Conductor, 5000 ft L, GreenIn Stock: 18473more info
|
BrandSouthwire
MFG #40019205
Werner Part #1325116
UPC032886901492
In Stock: 18473more info
|
BrandSouthwire
MFG #40019205
Werner Part #1325116
UPC032886901492
Product Description
Southwire NoLube SIMpull Building Wire, Type THHN/THWN-2/MTW, Reel Packaging, 600 V AC, 145 A, 1 Conductor, Stranded Copper Conductor, 1 AWG Conductor, 435 mil OD, 5000 ft Length, 19 Strands, PVC Insulation, Nylon Jacket, Green Jacket, 90 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size1 AWG
Conductor TypeStranded Copper
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGREEN
Jacket MaterialNylon
ManufacturerSouthwire Company
Number of Conductors1
Outside Diameter435 mil
Package TypeEACH
Strands19
Temperature Rating90 deg C
TypeType THHN/THWN-2/MTW
Voltage Rating600 V AC
Applications
For used in conduit and cable trays for services, feeders and branch circuit in commercial or industrial applications
Warranty
1 Year
Features
- THWN-2- Wet or dry locations not to exceed 90 C or locations not to exceed 75 C when exposed to oil
- Sunlight Resistant
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|REACH Compliant|ASTM B3, B8, B787|UL 83, 758, 1063, 1581|NOM Certified|ANCE Certified|Federal Specification A-A-59544|NEMA WC-70|NFPA 70
