Werner THHN Copper Building Wire

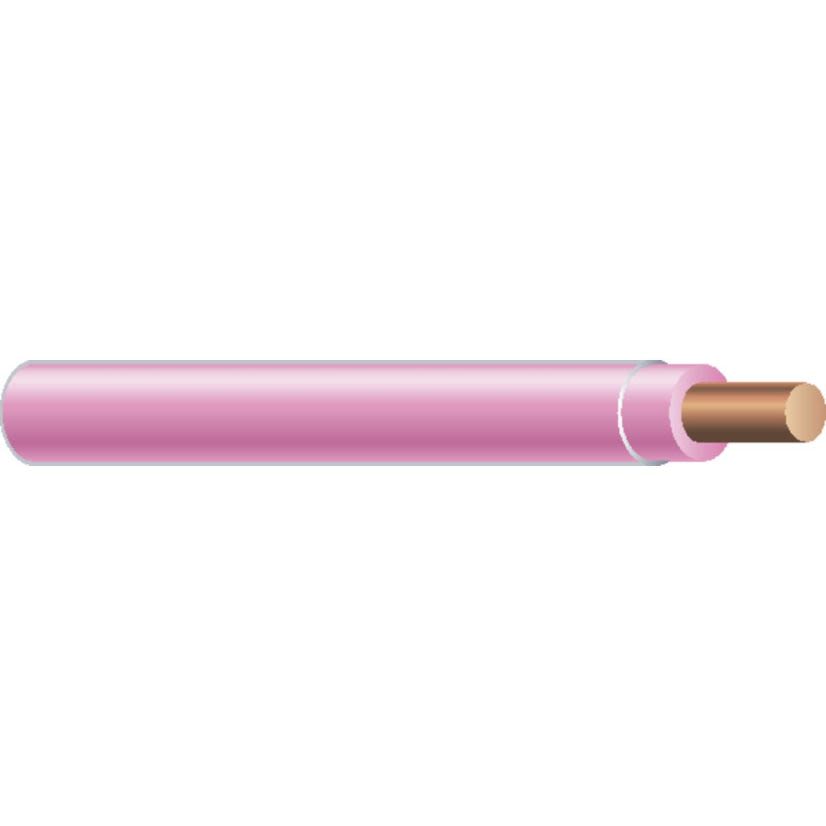

THHN Cable - Solid, Pink, 12 AWG, 500ft Spooled
Werner THHN Copper Building Wire
THHN Cable - Solid, Pink, 12 AWG, 500ft SpooledIn Stock: 4000more info
|
BrandWerner
MFG #THHN Copper Building Wire
Werner Part #65698
UPC032886224652
In Stock: 4000more info
|
BrandWerner
MFG #THHN Copper Building Wire
Werner Part #65698
UPC032886224652
Product Description
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THHN copper conductors are designed to be installed without application of a pulling lubricant. These conductors have multiple ratings. This is THHN Cable - Solid, Pink, 12 AWG, 500ft Spooled wire.
Documents
Features
Specifications
Features
- THHN or T90 Nylon- Dry locations not to exceed 90Ā° C
- THWN-2- Wet or dry locations not to exceed 90Ā°C or locations not to exceed 75Ā° C when exposed to oil
- THWN- Wet locations not to exceed 75Ā° C or dry locations not to exceed 90Ā° C or locations not to exceed 75Ā° C when exposed to oil
- TWN75- Wet locations not to exceed 75Ā° C
- MTW- Wet locations or when exposed to oil at temperatures not to exceed 60Ā° C or dry locations not to exceed 90Ā° C (with ampacity limited to that for 75Ā° C conductor temperature per NFPA 79)
- AWM- Dry locations not to exceed 105Ā° C only when rated and used as appliance wiring material
Specifications
Standards/Approvals: ARRA, Buy American Act and RoHS Compliant, ASTM Specified, UL Standard 83, UL 1581, UL Standard 1063 (MTW), CSA, NOM-ANCE 90(D)C, Federal Specification A-A-59544, requirements of the National Electrical Code (NFPA70), Compliant
