Werner THHN Copper Building Wire

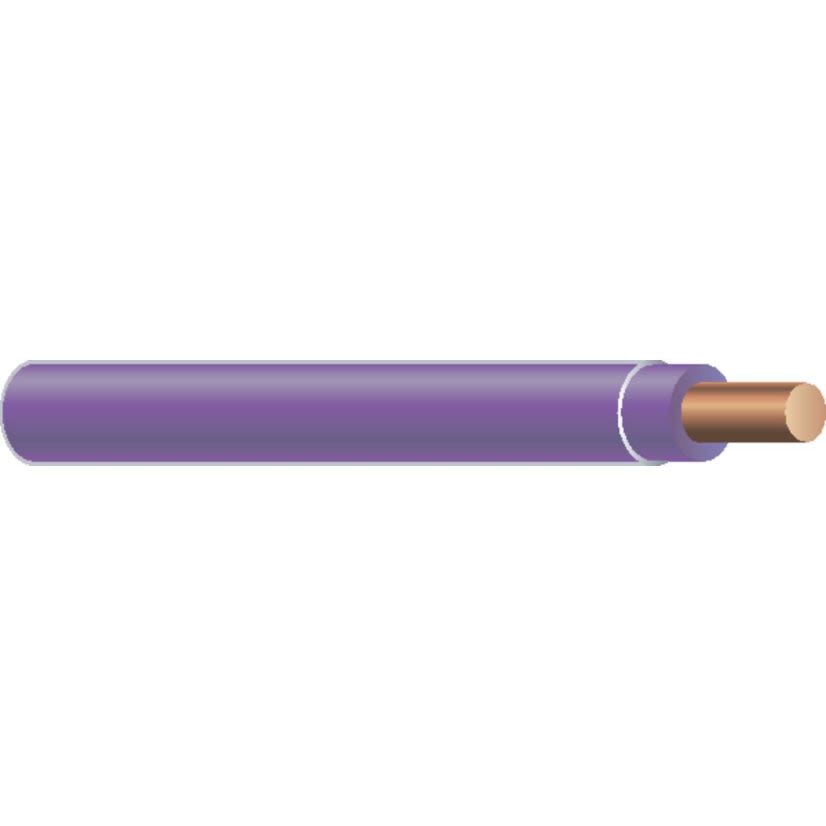

THHN Cable - Solid, Purple, 12 AWG, 2500 ft Spooled
Werner THHN Copper Building Wire
THHN Cable - Solid, Purple, 12 AWG, 2500 ft SpooledNon-stock product. Available to order - lead time may vary.
BrandWerner
MFG #THHN Copper Building Wire
Werner Part #1410750
UPC032886224560
Non-stock product. Available to order - lead time may vary.
BrandWerner
MFG #THHN Copper Building Wire
Werner Part #1410750
UPC032886224560
Product Description
THHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. THHN copper conductors are designed to be installed without application of a pulling lubricant. These conductors have multiple ratings. This is a Solid Purple 12 AWG wire and is packaged in a 2500 foot spool.
Documents
Features
Specifications
Features
- THHN or T90 Nylon- Dry locations not to exceed 90° C
- THWN-2- Wet or dry locations not to exceed 90°C or locations not to exceed 75° C when exposed to oil
- THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
- TWN75- Wet locations not to exceed 75° C
- MTW- Wet locations or when exposed to oil at temperatures not to exceed 60° C or dry locations not to exceed 90° C (with ampacity limited to that for 75° C conductor temperature per NFPA 79)
- AWM- Dry locations not to exceed 105° C only when rated and used as appliance wiring material
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
