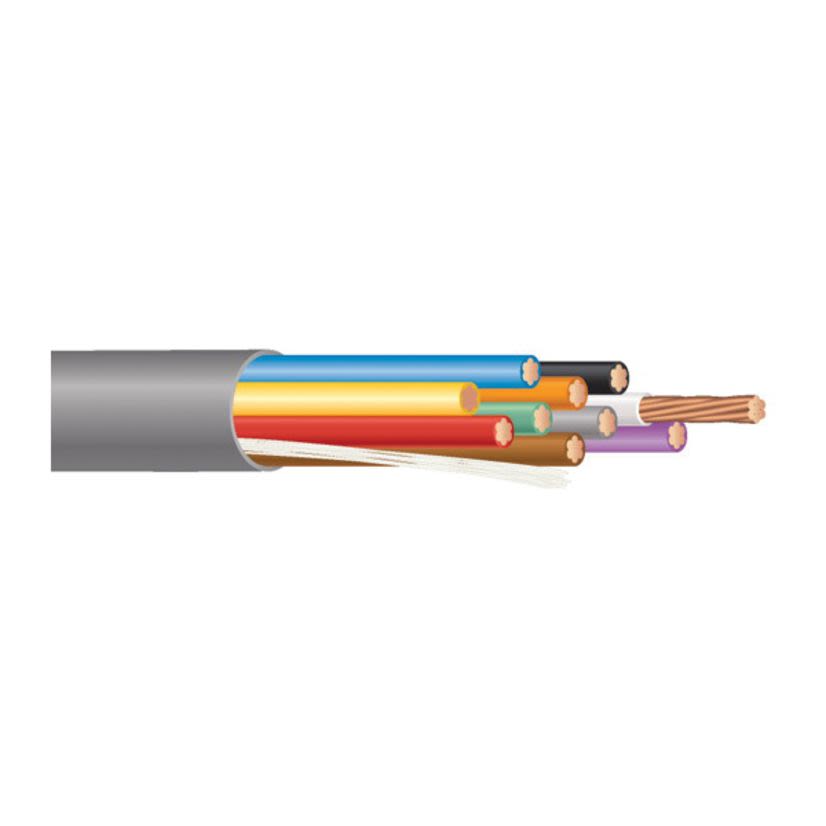

Southwire R40018-1A
Southwire TAPPAN R40018-1A 31UR Type CMR/CL3R Multi-Conductor Unshielded Riser Cable, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft L
Southwire R40018-1A
Southwire TAPPAN R40018-1A 31UR Type CMR/CL3R Multi-Conductor Unshielded Riser Cable, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft LIn Stock: 8000more info
|
In Stock: 8000more info
|
Product Description
Southwire TAPPAN Riser Cable, Type CMR/CL3R Multi-Conductor Unshielded, Series: 31UR, 300 V AC, 2 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.161 in OD, 1000 ft Length, 7 Strands, 6.92 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, 60 deg C
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
BABA CompliantYes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Cord Length3 ft
Country of OriginUS
Insulation MaterialPVC
Jacket ColorGray
Jacket MaterialPVC
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter0.161 in
Resistance6.92 Ohm
Series31UR
Strands7
Temperature Rating60 deg C
TypeType CMR/CL3R Multi-Conductor Unshielded
Voltage Rating300 V AC
Applications
Remote Control, Signaling and Power Limited Circuits, Communication Circuits, Security, Sound and Audio, Speaker Cable, Public Address, Intercom, Sound Reinforcement, Alarm and Access Control Circuits Applications
Warranty
1 Year
Features
- Suitable for interconnection of electrical devices within a security and fire protective signaling system
- For use in dry or damp locations
Specifications
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed to UL 13
