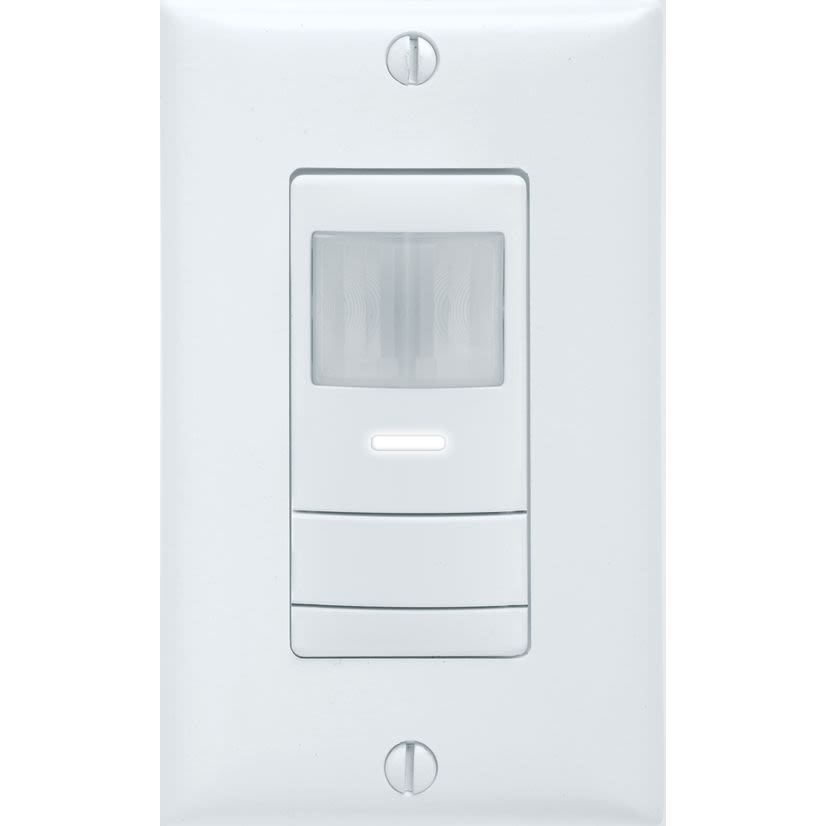

Sensor Switch WSX WH
Sensor Switch WSX WH WSX Rectangular Single Relay Wall Mount Occupancy Sensor, 120/277 V AC, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Wall Mounting
š Ships Quickly from Acuity
Sensor Switch WSX WH
Sensor Switch WSX WH WSX Rectangular Single Relay Wall Mount Occupancy Sensor, 120/277 V AC, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Wall MountingNon-stock product. Available to order - lead time may vary.
BrandSensor Switch
MFG #WSX WH
Werner Part #4022330
UPC753573767527
Non-stock product. Available to order - lead time may vary.
BrandSensor Switch
MFG #WSX WH
Werner Part #4022330
UPC753573767527
Product Description
Sensor Switch, WSX WH, Wall Mount Occupancy Sensor, Rectangular Single Relay, Series: WSX, 120/277 V AC, 800/1200 W Power, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Fluorescent/Incandescent/LED Lamp, 50/60 Hz Response, Wall Mounting, 0 to 60 deg C, Plastic, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorWhite
Country of OriginMX
Coverage20 ft
Dimensions2.74 in H x 1.68 in W x 1.63 in D
Lamp TypeFluorescent/Incandescent/LED
ManufacturerAcuity Brands
MaterialPlastic
Mounting TypeWall
Package Height5 in
Package Length3.94 in
Package TypeEACH
Package Weight0.37 lb
Package Width2.36 IN
Power Rating800/1200 W
Response Frequency50/60 Hz
Sensor TypePassive Infrared
SeriesWSX
Temperature Rating0 to 60 deg C
TypeRectangular Single Relay
Viewing Angle180 deg
Voltage Rating120/277 V AC
Documents
Applications
Education, Government, Healthcare, Hospital, Manufacturing, Offices and Banks, Religious, Retail, Sports, Warehouses and Indoor Applications
Features
- The WSX family of wall switch occupancy sensors provide simple and cost-effective solutions for commercial and residential lighting control applications
- With your choice of passive infrared (PIR) or dual technology (PDT) with PIR plus patented Microphonics detection, the WSX family provides reliable sensing and dimming performance optimized for your space
- WIRING - Easy to install while helping to aid in energy code compliance, the WSX has a patented wiring method that enables them to function with or without a neutral connection
- GROUNDING - Self-grounding mounting strap
- WIRING - Line power and load wires are interchangeable, making it impossible to wire backwards
- COMPATIBILITY - Compatible with LEDs, electronic and magnetic ballasts, CFLs, and incandescents
- CONNECTIONS - Device accommodates powering over ground or neutral connection
- CONSTRUCTION - Vandal resistant lens
Specifications
- cULus Listed
Warranty
5 Years Limited
