RAB WPLED26Y

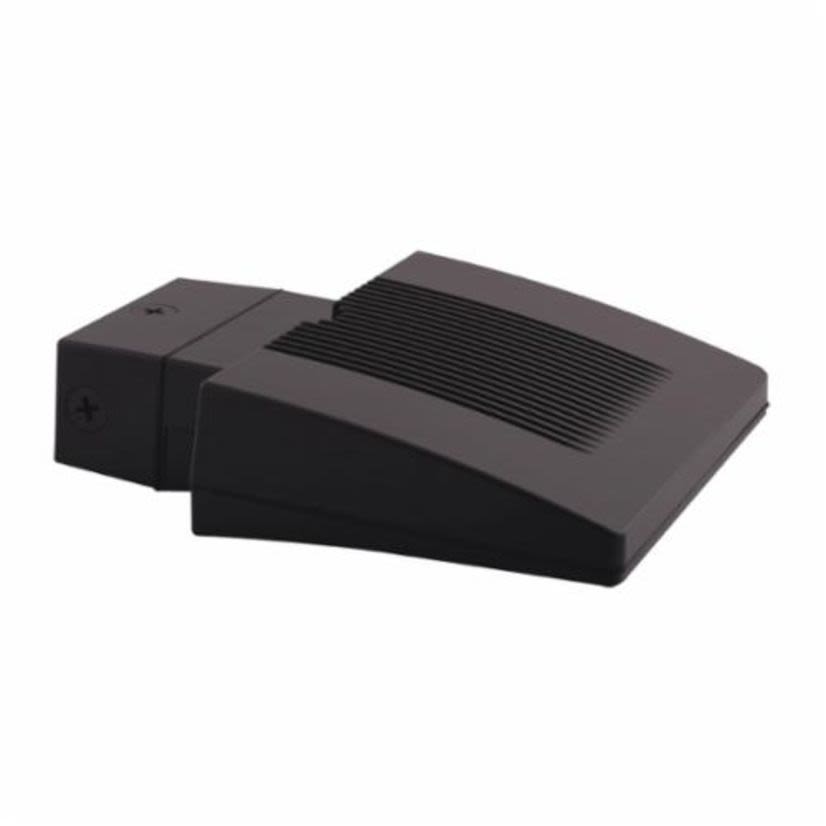

RAB WPLED26Y Wallpack,) LED Lamp, 29 W Fixture, 100 to 240/277 VAC, Bronze Housing
RAB WPLED26Y
RAB WPLED26Y Wallpack,) LED Lamp, 29 W Fixture, 100 to 240/277 VAC, Bronze HousingNon-stock product. Available to order - lead time may vary.
BrandRAB
MFG #WPLED26Y
Werner Part #3944345
UPC019813157856
Non-stock product. Available to order - lead time may vary.
BrandRAB
MFG #WPLED26Y
Werner Part #3944345
UPC019813157856
Product Description
RAB Wallpack, Series: WPLED, 100 to 240/277 VAC, 29 W Fixture, 0.26/0.16/0.14/0.12 A, LED Lamp, 26 W Lamp, 100000 hr Average Life, Warm White Light, 3000 K Color Temperature, 83 CRI, Class 2/Constant Current Ballast, 1162 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 6 in L x 9-1/4 in W Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Average Life100000 hr
Ballast TypeClass 2/Constant Current
Color Rendering Index (CRI)83
Color Temperature3000 K
Country of OriginCN
Dimensions6 in L x 9-1/4 in W
Enclosure TypeIP66
Fixture Wattage29 W
Housing FinishBronze
Housing MaterialDie Cast Aluminum
Lamp Base TypeMedium
Lamp TypeLED
Lamp Wattage26 W
Light ColorWarm White
Lumen1162 Lumens
ManufacturerRAB Lighting
SeriesWPLED
TypeLandscape Non-Fixture
Voltage Rating100 to 240/277 V AC
Applications
Wet Locations
Included
120 V Button Photocell
Warranty
5 years
Features
- High performance LED light engine
- Maintains 70% of initial lumens at 100000 hr
- Weatherproof high temperature silicone gasket
- Superior heat sinking with die cast aluminum housing and external fins
- Suitable for use in 40 deg C ambient temperature
- Cast aluminum thermal management system for optimal heat sinking, the LPACK is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature
- 0.26 A at 120 VAC, 0.16 A at 208 VAC, 0.14 A at 240 VAC, 0.12 A at 277 VAC
- Without photocell
