RAB SLIM26

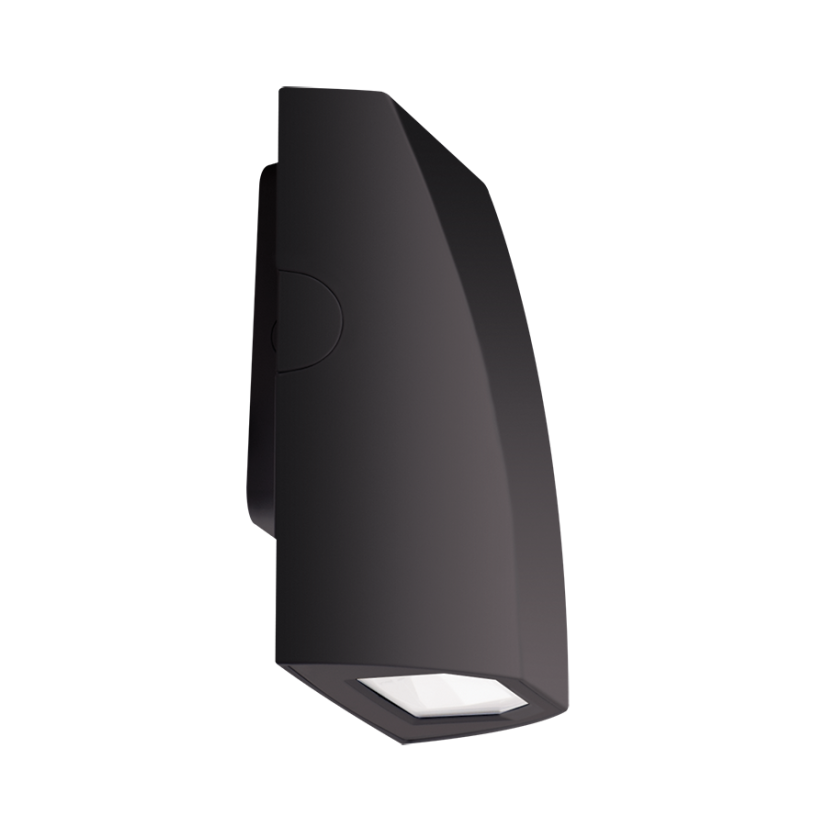

RAB SLIM26 Wallpack,) LED Lamp, 31 W Fixture, 120/208/240/277 V AC, Bronze Housing
RAB SLIM26
RAB SLIM26 Wallpack,) LED Lamp, 31 W Fixture, 120/208/240/277 V AC, Bronze HousingOut of Stockmore info
|
BrandRAB
MFG #SLIM26
Werner Part #3967079
UPC019813040509
Out of Stockmore info
|
BrandRAB
MFG #SLIM26
Werner Part #3967079
UPC019813040509
Product Description
RAB Wallpack, Series: SLIM, 120/208/240/277 V AC, 31 W Fixture, 0.27/0.17/0.15/0.13 A, LED Lamp, 26 W Lamp, 100000 hr Average Life, Cool White Light, 5100 K Color Temperature, 68 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 2648 Lumens, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Housing Finish, 8.75 in H x 6.5 in W x 3.9 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Average Life100000 hr
Ballast TypeClass 2/Constant Current
ColorBronze
Color Rendering Index (CRI)68
Color Temperature5100 K
Country of OriginCN
Dimensions8.75 in H x 6.5 in W x 3.9 in D
Enclosure TypeIP66
FinishPowder Coated
Fixture Wattage31 W
Housing FinishBronze
Housing MaterialDie Cast Aluminum
Lamp TypeLED
Lamp Wattage26 W
Lens TypeTempered Glass
Light ColorCool White
Lumen2648 Lumens
ManufacturerRAB Lighting
MaterialDie Cast Zinc
SeriesSLIM
TypeCombination Weatherproof
Type / StyleWALLPACKS
Voltage Rating120/208/240/277 V AC
Documents
Applications
Wet Locations
Warranty
5 Years
Features
- Ultra efficient and deliver impressive light distribution with a compact low profile design that's super easy to install as a downlight or uplight
- Precision die cast aluminum housing
- High temperature silicone gaskets
- Specular thermoplastic reflector
- Recommended mounting height up to 22 ft
- Superior heat sinking with internal air flow fins
- Heavy duty mounting bracket with hinged housing for easy installation
- Mercury and UV free
- -40 to 40 deg C temperature
- Full cutoff, fully shielded LED wallpack
- Can be used as a downlight or uplight
- Contractor friendly features for easy installation
- 97 LPW efficacy
- High temperature silicone gasket
- Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
- Ingress protection rating of IP66 for dust and water
- 0.27 A at 120 VAC, 0.17 A at 208 VAC, 0.15 A at 240 VAC, 0.13 A at 277 VAC
- Without photocell
