RAB BAYLED78NW

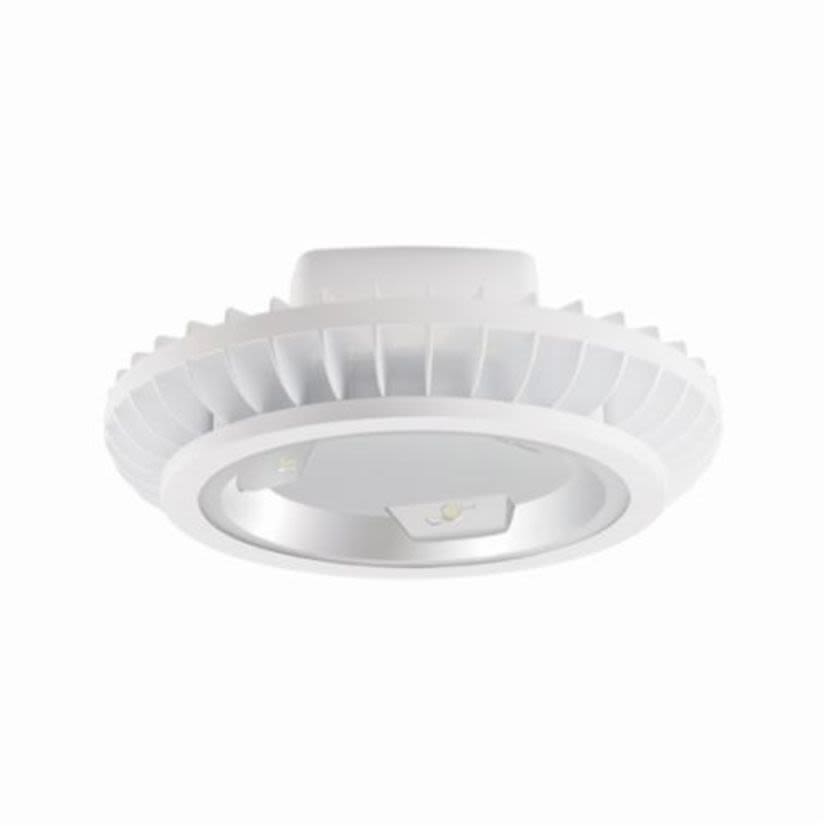

RAB BAYLED78NW High Bay Fixture With Hook and Cord,), 89 W Fixture, 120/208/240/277 V AC, White Housing
RAB BAYLED78NW
RAB BAYLED78NW High Bay Fixture With Hook and Cord,), 89 W Fixture, 120/208/240/277 V AC, White HousingNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
RAB High Bay Fixture, Series: BAYLED, 120/208/240/277 V AC, 89 W Fixture, 0.4/0.45/0.52/0.82 A, LED Lighting Technology, 78 W Lamp, 100000 hr Average Life, Neutral White Light, 4000 K Color Temperature, 82 CRI, Class 2/Constant Current Ballast, Tempered Glass Lens, 6461 Lumens, Ceiling Mounting, Die Cast Aluminum Housing Material, White Housing Finish, 9-3/8 in H x 18 in W Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Average Life100000 hr
Ballast TypeClass 2/Constant Current
Color Rendering Index (CRI)82
Color Temperature4000 K
Country of OriginCN
Dimensions9-3/8 in H x 18 in W
Fixture Wattage89 W
Housing FinishWhite
Housing MaterialDie Cast Aluminum
Lamp TypeLED
Lamp Wattage78 W
Lens TypeTempered Glass
Light ColorNeutral White
Lumen6461 Lumens
ManufacturerRAB Lighting
Mounting TypeCeiling/Recessed
Package TypeEACH
Power SourceNi-Cd Battery
SeriesBAYLED
TypeSingle Face
Type / StyleCEILING
Voltage Rating120/208/240/277 V AC
Applications
For indoor application, large spaces, including warehouses, factories and distribution centers
Warranty
5 years
Features
- Replaces 250 W metal halide high bays
- Reduces energy consumption up to 67%
- 3 multi-chip, 26 W high output, long life LEDs
- 100000 hr LED lifespan based on IES LM-80 results and TM-21 calculations lifespan
- 3-step MacAdam ellipse binning to achieve consistent fixture to fixture color
- LED color temperature is warranted to shift no more than 200 K in CCT over a 5 years period
- Suitable for use in 55 deg C ambient temperature
- Superior thermal management with external airflow fins
- Precision die cast aluminum housing and door frame with 3 ft 600 VAC power cord
- Heavy duty 3/4 in NPS hook and 3 ft safety chain
- Specular vacuum metalized polycarbonate
- High temperature silicone gaskets
- Our environmentally friendly polyester powder coatings are formulated for high durability and long-lasting color and contains no VOC or toxic heavy metals
- Mercury and UV-free, polyester powder coat finish formulated without the use of VOC or toxic heavy metals
- 0.82 A at 120 VAC, 0.52 A at 208 VAC, 0.45 A at 240 VAC and 0.4 A at 277 VAC amperage ratings
Specifications
Lighting Technology: Multi-Chip
