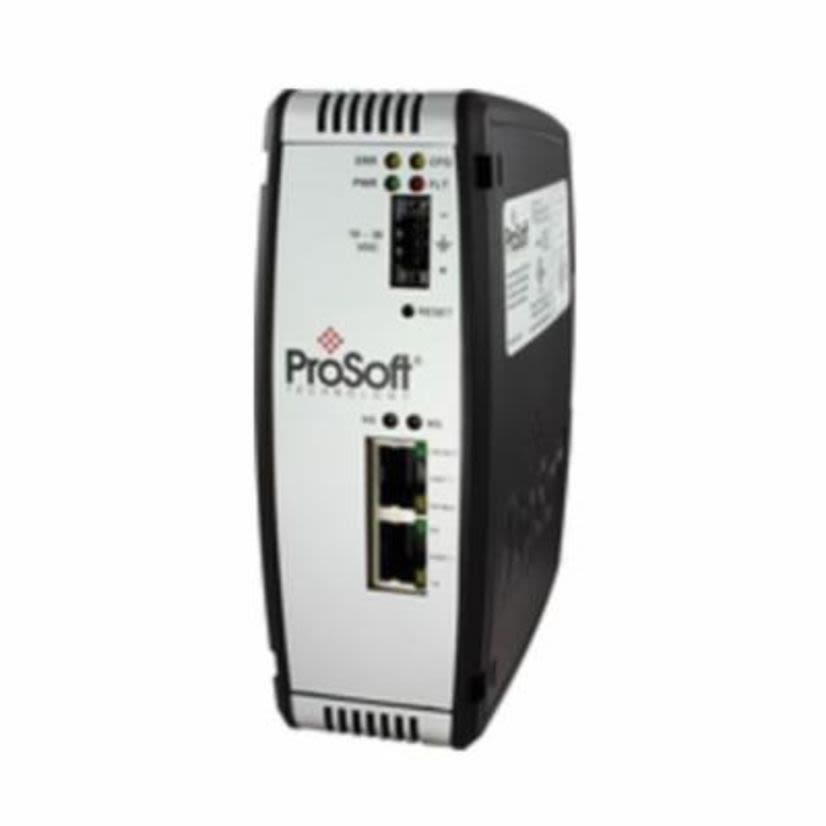

ProSoft Technology PLX31-MBTCP-MBS
ProSoft Technology PLX31-MBTCP-MBS Modbus TCP/IP to Modbus Serial Gateway, PLX30-EtherNet/IP Protocol, 50/60 Hz
ProSoft Technology PLX31-MBTCP-MBS
ProSoft Technology PLX31-MBTCP-MBS Modbus TCP/IP to Modbus Serial Gateway, PLX30-EtherNet/IP Protocol, 50/60 HzNon-stock product. Available to order - lead time may vary.
BrandProSoft Technology
MFG #PLX31-MBTCP-MBS
Werner Part #4045137
Non-stock product. Available to order - lead time may vary.
BrandProSoft Technology
MFG #PLX31-MBTCP-MBS
Werner Part #4045137
Product Description
ProSoft Technology Modbus TCP/IP to Modbus Serial Gateway, PLX30-EtherNet/IP Protocol, 50/60 Hz, Serial Port, 2 Ports, 5.38 in H x 1.99 in W x 4.38 in D, Environmental Conditions: 5 to 95% Humidity
Attributes
Applications
Features
Attributes
Dimensions5.38 in H x 1.99 in W x 4.38 in D
Environmental Conditions5 to 95% Humidity
Frequency Rating50/60 Hz
ManufacturerProSoft Technology
Number of Ports2
Port TypeSerial
Applications
For widely used in nearly every industry
Features
- 10 to 36 VDC allowed positive, negative, GND terminals power supply
- -25 to 70 deg F operating temperature
- Configuration (CFG) and error (ERR) communication status, power (PWR) and hardware fault (FLT), network status (NS) EtherNet/IP class I or class III connection status, module status (MS) module configuration status, EtherNet communication port link/activity and 100mbit, serial communication port receive (RX) and transmit (TX) LED indicators
- The number of serial communication ports depends on the gateway type, and the combination of protocols serial port
- 10/100 base-T half duplex RJ45 connector electrical isolation 1500 Vrms at 50 Hz to 60 Hz for 60 sec EtherNet port
- EtherNet broadcast storm resiliency is equal to less than or equal to 5000 [ARP] frames/sec and less than or equal to 5 min duration
- 10/100 Mb EtherNet port with auto cable crossover detection
- 2500 Vrms port signal isolation per UL 1577, 3000 VDC minimum port to ground and port to logic power isolation serial port isolation
