Pos-E-Kon SH124MV

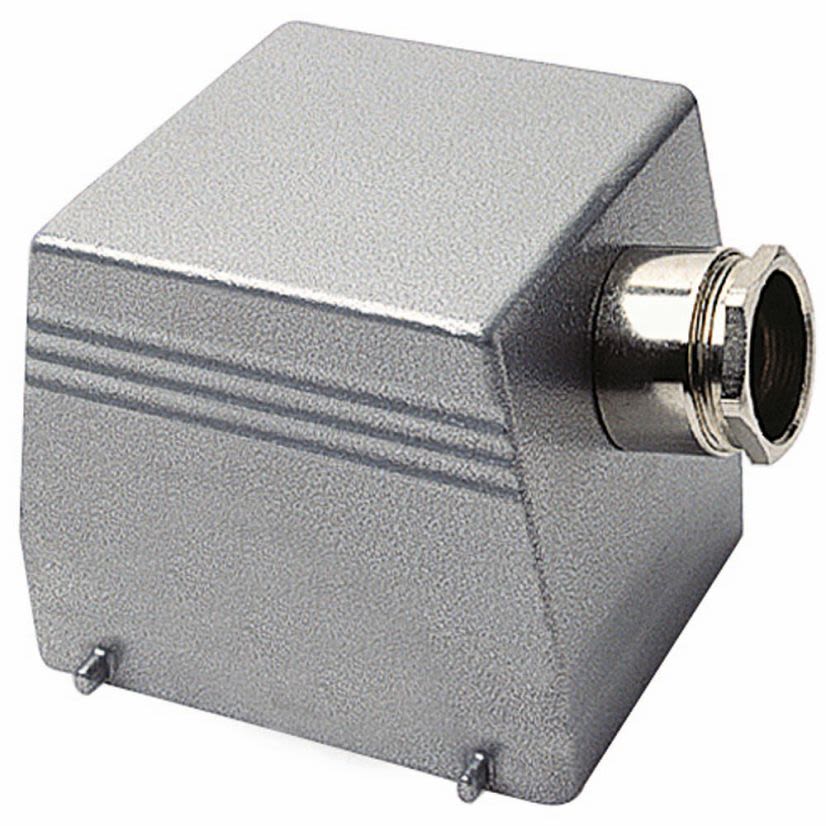

Pos-E-Kon SH124MV B Series Double Post Hood With Gasket, Side 1 x 1 in NPT Entry, Standard Mount, Die Cast Aluminum
Pos-E-Kon SH124MV
Pos-E-Kon SH124MV B Series Double Post Hood With Gasket, Side 1 x 1 in NPT Entry, Standard Mount, Die Cast AluminumNon-stock product. Available to order - lead time may vary.
BrandPos-E-Kon
MFG #SH124MV
Werner Part #3937993
UPC786209987082
Non-stock product. Available to order - lead time may vary.
BrandPos-E-Kon
MFG #SH124MV
Werner Part #3937993
UPC786209987082
Product Description
Pos-E-Kon Double Post Hood, Series: B Series, Side Entry Position, 1 x 1 in NPT Entry, Standard Mounting, For Use With: B Series Connector, -40 to 257 deg F, Specifications: 10 A, 16 A, 35 A, 600 V AC, Die Cast Aluminum, Epoxy Powder Coated
Attributes
Documents
Included
Features
Specifications
Attributes
Country of OriginDE
Entry PositionSide
FinishEpoxy Powder Coated
ManufacturerABB
MaterialDie Cast Aluminum
Mounting TypeStandard
SeriesB Series
Suitable For Use WithB Series Connector
Temperature Rating-40 to 257 deg F
Type / StyleHoods-Standard Mount
Documents
Included
Gaskets
Features
- 24 contacts with ground
- Side entry double lever locking post hood is made of die cast aluminum alloy that provides resistance to corrosion
- IP65 locked positions internal protection per DIN VDE 0470
- Hood is hard silver/gold plated and has epoxy powder coated finish EPDM seal gaskets that are chemical-resistant
- B24 double lock system 1 x PG29-1 connection
Specifications
10 A, 16 A, 35 A, 600 V AC
