Pos-E-Kon FS106C

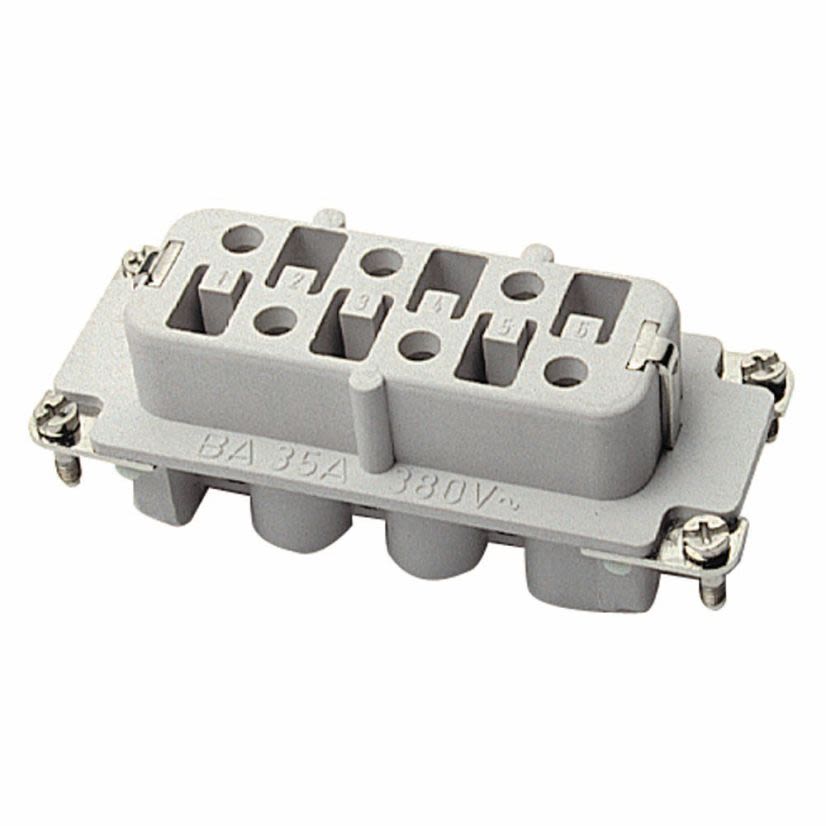

Pos-E-Kon FS106C C Series High Current Terminal Insert, 6 Positions, 20 to 10 AWG Wire, Female Screw Connection, Glass Filled Thermoplastic
Pos-E-Kon FS106C
Pos-E-Kon FS106C C Series High Current Terminal Insert, 6 Positions, 20 to 10 AWG Wire, Female Screw Connection, Glass Filled ThermoplasticNon-stock product. Available to order - lead time may vary.
BrandPos-E-Kon
MFG #FS106C
Werner Part #64713
UPC786210791098
Non-stock product. Available to order - lead time may vary.
BrandPos-E-Kon
MFG #FS106C
Werner Part #64713
UPC786210791098
Product Description
Pos-E-Kon Terminal Insert, High Current, Series: C Series, 6 Positions, 20 to 10 AWG Wire, Female Screw Connection, For Use With: C Series Connector, -40 to 257 deg F, Specifications: 10/16/35 A, 600 V AC, Glass Filled Thermoplastic
Attributes
Documents
Applications
Features
Specifications
Attributes
Connection TypeFemale Screw
Country of OriginDE
ManufacturerABB
MaterialGlass Filled Thermoplastic
Number of Positions6
Package Length0.01 in
Package TypeEACH
Package Weight0.24 lb
Package Width0.01 in
SeriesC Series
Size of Wire20 to 10 AWG
Suitable For Use WithC Series Connector
Temperature Rating-40 to 257 deg F
TypeHigh Current
Type / StyleHigh Current
Documents
Applications
For use with C series
Features
- 6 contacts with ground
- Use small blade screwdriver to push wire entry tab in for easy contact removal
- Integral screw terminal contacts provide for easy terminal wiring and fast assembly
- High current screw terminal
- IP65 locked positions per DIN VDE 0470
Specifications
10/16/35 A, 600 V AC
