Panduit TM2S6-C

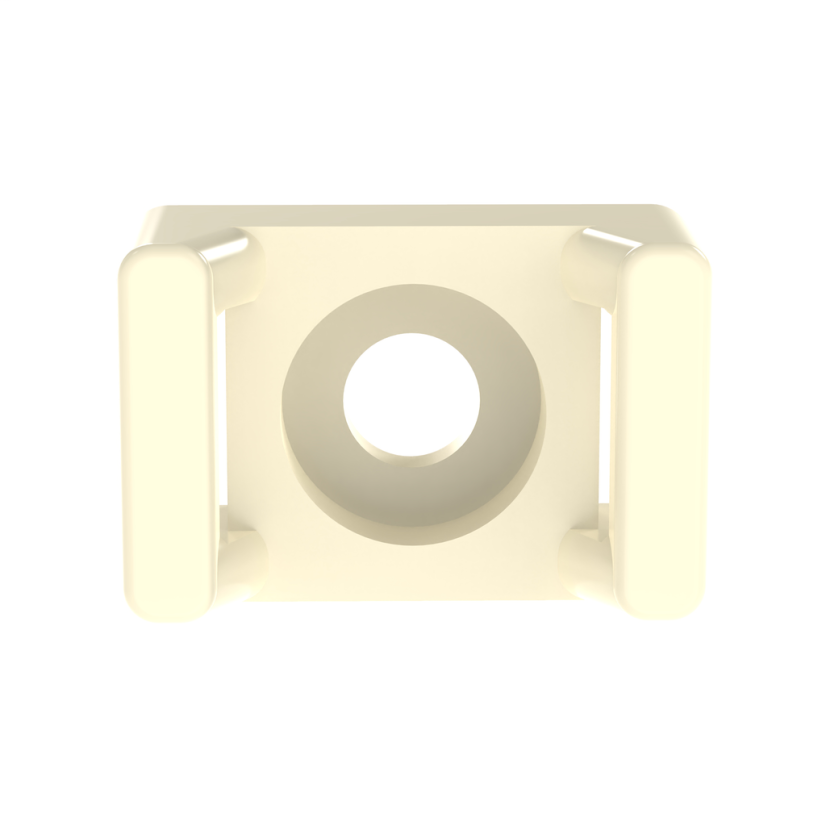

Panduit TM2S6-C Cable Tie Mount, 2-Way, Threaded Mount, 0.19 in W Tie, Nylon 6.6/Polyamide, Natural
Panduit TM2S6-C
Panduit TM2S6-C Cable Tie Mount, 2-Way, Threaded Mount, 0.19 in W Tie, Nylon 6.6/Polyamide, NaturalNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #TM2S6-C
Werner Part #1099857
UPC074983582006
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #TM2S6-C
Werner Part #1099857
UPC074983582006
Product Description
Panduit Cable Tie Mount, 2-Way Tie Entry, Threaded Mount, 0.19 in Maximum Tie Width, 0.63 in Base Length, 0.43 in Base Width, Nylon 6.6/Polyamide, Natural
Attributes
Documents
Applications
Features
Specifications
Attributes
Base Length0.63 in
Base Width0.43 in
Bundle Diameter1-1/4 in
ColorNatural
Country of OriginUS
Length5.6 in
Lock MechanismLocking
ManufacturerPanduit
MaterialNylon 6.6/Polyamide
Maximum Tie Width0.19 in
Package Height1.25 in
Package Length4.95 in
Package Volume80621.6 cu-in
Package Weight0.15 lb
Package Width4.85 in
SeriesPLT
Temperature Rating-70 to 185 deg F
Tensile Strength18 lb
Thickness0.05 in
Tie Entry2-Way
TypeCross Section Miniature Plenum Rated
Type / StyleScrew Applied
Width0.18 in
Documents
Applications
Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface and Indoor Applications
Features
- Low profile design keeps bundle close to mounting surface
- Unique cradle design provides maximum stability for cable bundle
- For use with miniature, intermediate and standard cable tie
- It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance and stiffness in indoor environments
- Panduit tm2s6-c screw applied cable tie mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles
- Install with a #6 (M3) screw
- For indoor use and are suitable for miniature, intermediate and standard cross to section cable tie
- Made of nylon 6.6
- It is made of nylon 6.6, which increases mechanical strength, heat, wear resistance and stiffness
- Unique cradle design provides maximum stability for cable bundle
- Low profile design keeps bundle close to mounting surface
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CE Certified|UL Listed
