Panduit SGABM20-AV-C300

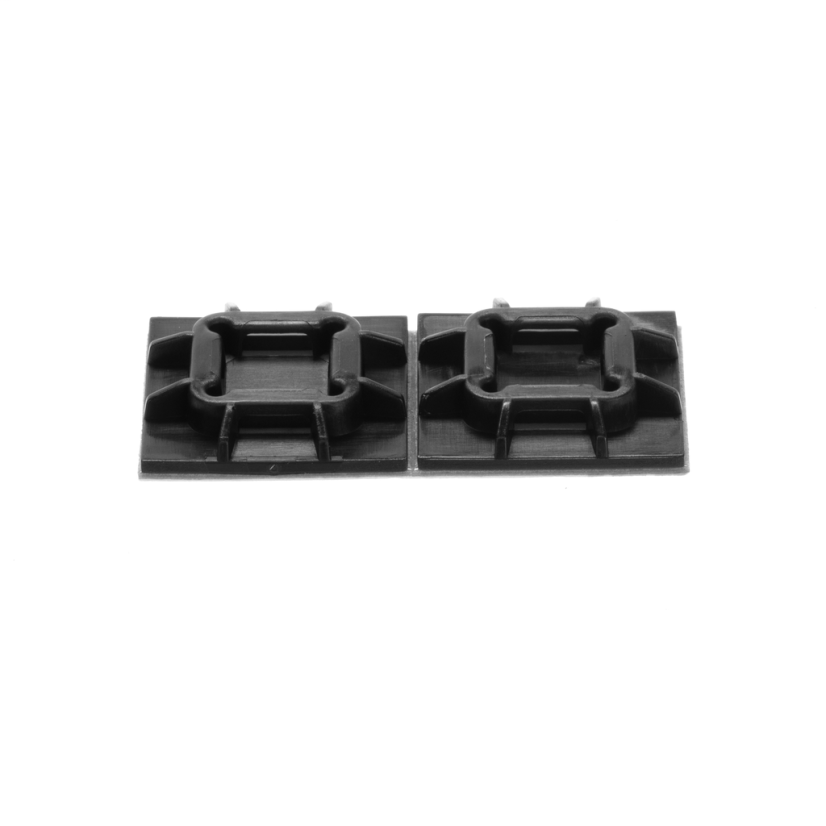

Panduit Super-Grip SGABM20-AV-C300 Heat Stabilized Cable Tie Mount, 4-Way, Rubber Adhesive Tape Mount, 0.48 in W Tie, Nylon 6.6, Black
Panduit SGABM20-AV-C300
Panduit Super-Grip SGABM20-AV-C300 Heat Stabilized Cable Tie Mount, 4-Way, Rubber Adhesive Tape Mount, 0.48 in W Tie, Nylon 6.6, BlackNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Super-Grip Cable Tie Mount, Heat Stabilized, 4-Way Tie Entry, Rubber Adhesive Tape Mount, 0.48 in Maximum Tie Width, 3/4 in Base Length, 3/4 in Base Width, Nylon 6.6, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
Base Length3/4 in
Base Width3/4 in
Bundle Diameter4 in
ColorBlack
Country of OriginUS
Length14.9 in
Lock MechanismSelf-Locking
ManufacturerPanduit
MaterialNylon 6.6
Maximum Tie Width0.48 in
SeriesBT Series
Temperature Rating-76 to 239 deg F
Tensile Strength120 lb
Thickness0.07 in
Tie Entry4-Way
TypeHeat Stabilized
Type / StyleCable Tie Mounts - Adhesive Backed
Width0.52 in
Documents
Applications
For securing wires and cables in demanding applications, such as harsh environments, these mounts can be utilized in the alternative energy, mass-transit rail, control panel, marine, heavy equipment, white goods, and automotive industries, outdoor and high temperature applications
Features
- Low profile design keeps bundle close to mounting surface
- Small overall size allows for use where space is limited
- Provides maximum adhesion, especially in harsh, high temperature, outdoor environments, extending service life
- Protect the cable bundle and the installer, improving productivity, job site safety and reliability
- Easily handled, improving productivity
- Polyamide (PA) insulation
- Super-grip, weather-resistant
- For high temperature operation
- For use with Super-Grip miniature and Super-Grip intermediate cable ties
- The Panduit sgabm20-av-c300 super-grip acrylic based adhesive backed cable tie mount is applied with very high-bond adhesive
- They are made of heat stabilized and weather-resistant nylon 6.6 and are for use with miniature and intermediate cross to section cable tie
- Designed for outdoor use, especially in harsh and high to temperature environment
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant
