Panduit SCSF4/0-X

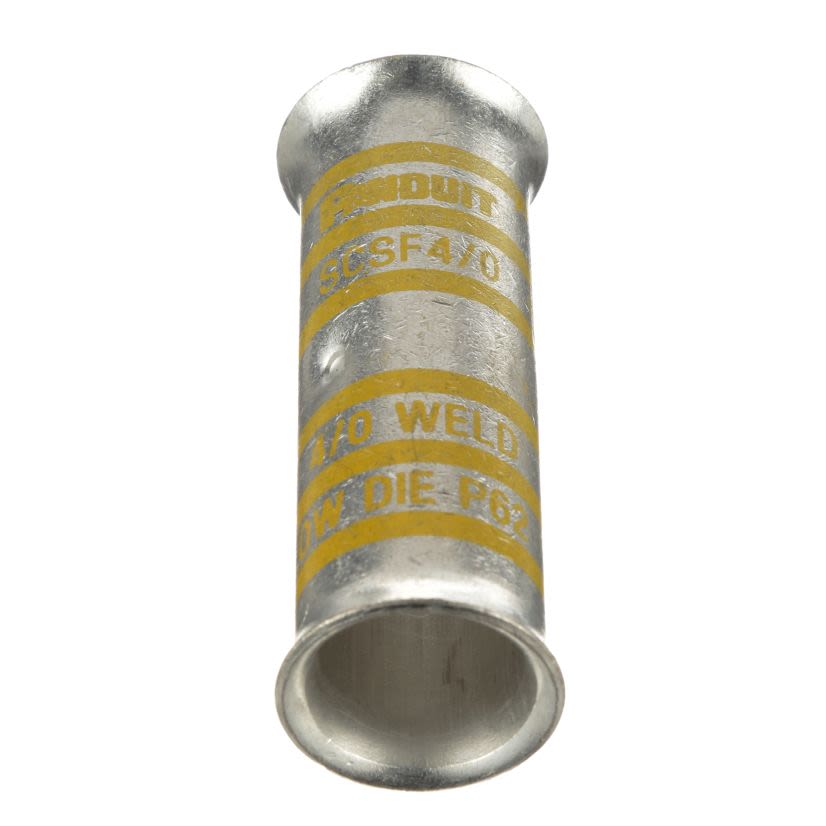

Panduit Pan-Lug SCSF4/0-X Compression Butt Splice, 4/0 AWG Conductor, 2-1/2 in L, Flared/Seamless/Standard Barrel, Copper, Yellow
Panduit SCSF4/0-X
Panduit Pan-Lug SCSF4/0-X Compression Butt Splice, 4/0 AWG Conductor, 2-1/2 in L, Flared/Seamless/Standard Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #SCSF4/0-X
Werner Part #3950946
UPC074983557042
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #SCSF4/0-X
Werner Part #3950946
UPC074983557042
Product Description
Panduit Pan-Lug Compression Butt Splice, Series: SCSF, Copper Conductor, 4/0 AWG Conductor, 2-1/2 in Length, Flared/Seamless/Standard Barrel, 0.63 in ID x 0.77 in OD Barrel, 35 kV, 1-3/16 in L Wire Strip, 90 deg C, Copper, Yellow, Electro TiN Coated
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.63 in ID x 0.77 in OD
Barrel TypeFlared/Seamless/Standard
ColorYellow
Conductor size4/0 AWG
Conductor TypeCopper
Country of OriginMX
FinishElectro TiN Coated
ManufacturerPanduit
MaterialCopper
SeriesSCSF
Temperature Rating90 deg C
TypeType SCSF
Type / StyleCompression
Voltage Rating35 kV
Documents
Applications
For flexible and extra flexible copper conductors
Features
- Color-coded barrels marked with Panduit die index numbers for proper crimp die selection
- Internal solid center prevents over-insertion of conductor
- Tin plated to inhibit corrosion
- Flared entry prevents bent back strands when inserting fine strand conductor into barrel
- Color coded barrels marked with Panduit die index numbers for proper crimp die selection
- Internal wire stops to prevent over insertion of conductor
- Tin plated to inhibit corrosion
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit crimping tools and dies
- 4/0 AWG class K and M, diesel locomotive flex conductor
Specifications
1-3/16 in L Wire Strip
