Panduit SBC4S-C

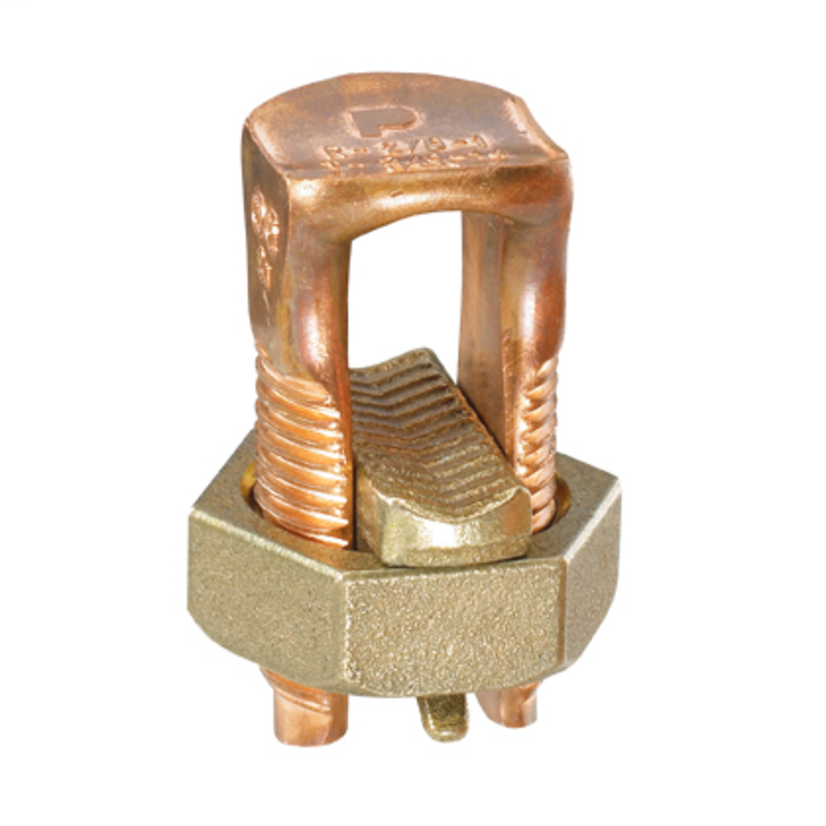

Panduit Pan-Lug SBC4S-C Dual Rated Split Bolt Mechanical Connector, 8 to 6 AWG Stranded Copper Conductor, Copper
Panduit SBC4S-C
Panduit Pan-Lug SBC4S-C Dual Rated Split Bolt Mechanical Connector, 8 to 6 AWG Stranded Copper Conductor, CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #SBC4S-C
Werner Part #1104975
UPC074983627202
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #SBC4S-C
Werner Part #1104975
UPC074983627202
Product Description
Panduit Pan-Lug Split Bolt Mechanical Connector, Dual Rated, Series: SBC, Stranded Copper Conductor, 8 to 6 AWG Conductor, 600 V AC, Specifications: 0.69 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 165 in-lb Tightening Torque, 90 deg C, Copper, Bare, 0.21 in ID x 0.98 in L x 0.45 in W Dimensions
Attributes
Documents
Features
Specifications
Attributes
Conductor size8 to 6 AWG
Conductor TypeStranded Copper
Country of OriginBR
Dimensions0.21 in ID x 0.98 in L x 0.45 in W
FinishBare
ManufacturerPanduit
MaterialCopper
Package Height3.4 IN
Package Length7.7 IN
Package Volume158257 cu-in
Package Weight7.15 lb
Package Width3.35 in
SeriesSBC
Temperature Rating90 deg C
TypeDual Rated
Type / StyleMechanical
Voltage Rating600 V AC
Documents
Features
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- Wide wire range taking capability minimizes inventory requirements
- Nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Pressure bar provides secure connection on a full range of conductor combinations used with each connector assuring premium wire pull out strength
- Dual rated for use with aluminum to aluminum, aluminum to copper and copper to copper conductor combinations
- Tin-plated to inhibit corrosion and oxidation
- True hex design for body and nut hex provides correct fit with socket, box or open end wrenches resulting in proper torquing of electrical connection
- Free floating pressure bar separates conductor of dissimilar materials for secure connection on a full range of conductor combinations
- Copper to copper connection
- Mechanical lug split bolt copper is made from high strength copper alloy to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements
- The internal pressure bar provides a secure connection on a full range of conductor combinations used with each Lug assuring premium wire pullout strength
- Made from high strength copper alloy to resist corrosion and provide premium electrical and mechanical performance
- High strength copper for corrosion resistance, extra long body, range taking, true hex design for correct fit
- 8 AWG stranded to 6 AWG stranded for equal run and tap combinations conductors
Specifications
0.69 in Hex Nut, 14 AWG Stranded Minimum Tap With One Maximum Run, 165 in-lb Tightening Torque
