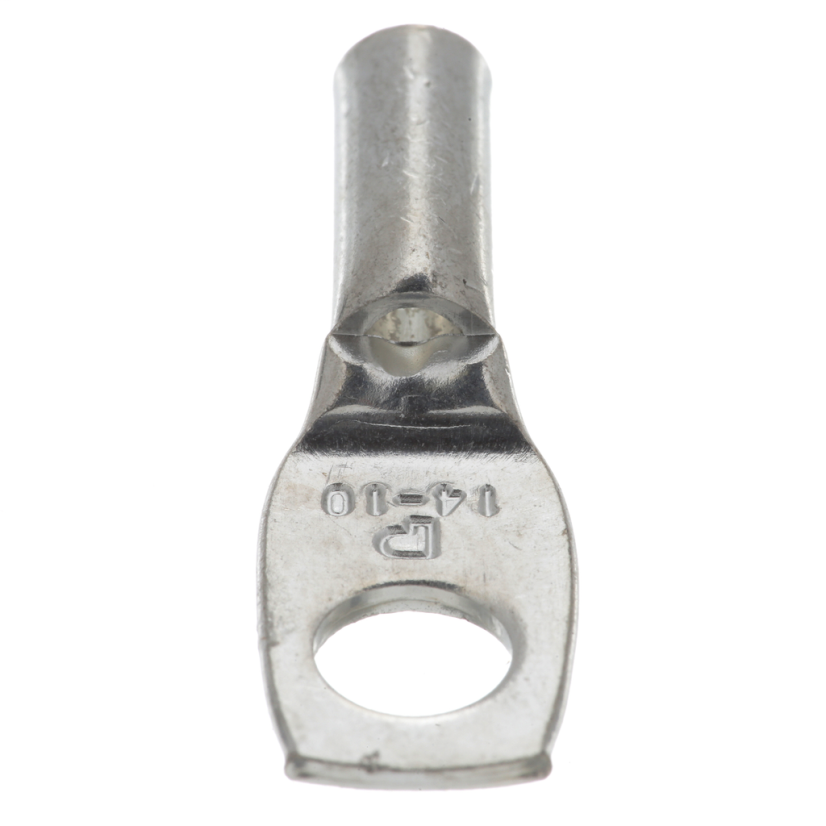

Panduit LCB10-14W-L
Panduit Pan-Lug LCB10-14W-L 1-Hole Compression Connector Lug, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, 42.826 in Stud, Tin Plated Copper
Panduit LCB10-14W-L
Panduit Pan-Lug LCB10-14W-L 1-Hole Compression Connector Lug, 14 to 10 AWG, 12 to 10 AWG Solid/Stranded Copper Conductor, 42.826 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCB10-14W-L
Werner Part #3972676
UPC074983972128
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCB10-14W-L
Werner Part #3972676
UPC074983972128
Product Description
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCB, Solid/Stranded Copper Conductor, 14 to 10 AWG, 12 to 10 AWG Conductor, 35 kV, 42.826 in Stud, Straight Tongue, 0.42 in W x 0.05 in THK Tongue, 1.31 in Overall Length, Long Barrel, 0.13 in ID x 0.22 in OD x 0.53 in L Barrel, 9/16 in L Wire Strip, 90 deg C, 42.614 in Mounting Hole, Tin Plated Copper
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.13 in ID x 0.22 in OD x 0.53 in L
Barrel TypeLong
Conductor size14 to 10 AWG, 12 to 10 AWG
Conductor TypeSolid/Stranded Copper
Country of OriginMX
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type42.614 in
Overall Length1.31 in
SeriesLCB
Stud Size42.826 in
Temperature Rating90 deg C
Tongue Size0.42 in W x 0.05 in THK
Tongue TypeStraight
Type1-Hole
Voltage Rating35 kV
Documents
Applications
For use with stranded copper conductors
Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Long barrel maximizes the number of crimps and provides premium wire pullout strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
Specifications
9/16 in L Wire Strip
