Panduit CWD3LG6

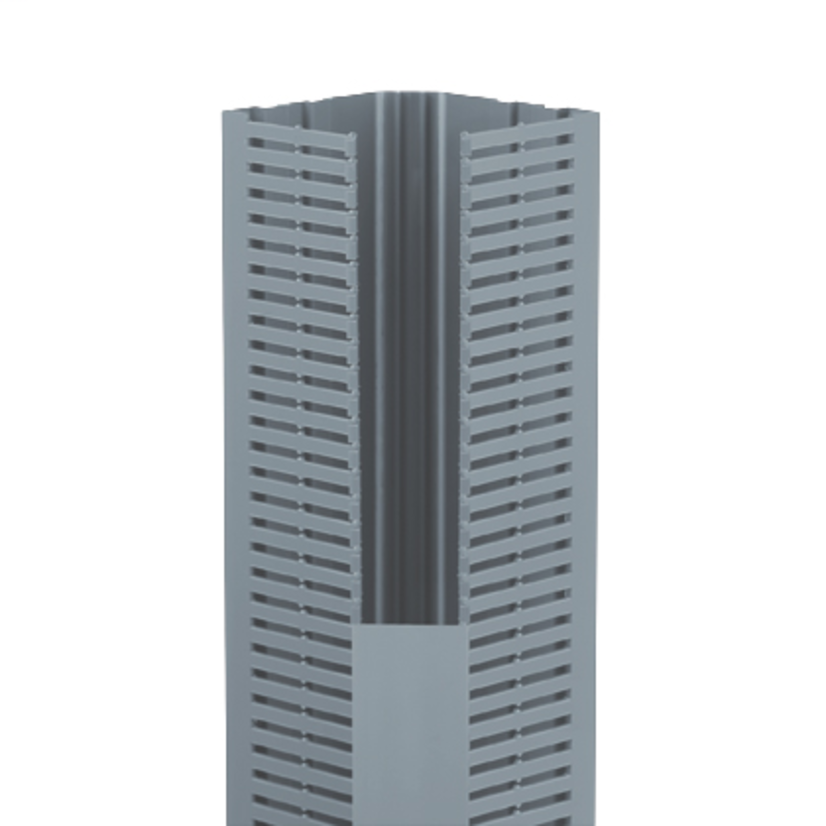

Panduit Panduct PanelMax CWD3LG6 1-Piece Type CWD Corner Wiring Duct, 0.2 in Slotted Slot, 4.4 in W x 3.57 in D, PVC
Panduit CWD3LG6
Panduit Panduct PanelMax CWD3LG6 1-Piece Type CWD Corner Wiring Duct, 0.2 in Slotted Slot, 4.4 in W x 3.57 in D, PVCOut of Stockmore info
|
Out of Stockmore info
|
Product Description
Panduit Panduct PanelMax Corner Wiring Duct, 1-Piece Type CWD, 4.4 in Width, 3.57 in Depth, 6 ft Length, Slotted Slot, 0.2 in Slot, Hole Mounting, Yes Adhesive Backed, PVC, Light Gray
Attributes
Documents
Applications
Features
Included
Attributes
Adhesive BackedYes
ColorLight Gray
Country of OriginUS
ManufacturerPanduit
MaterialPVC
Mounting TypeHole
Package Height3.6 IN
Package Length72 in
Package Volume1728 cu-in
Package Weight5.91 lb
Package Width9.5 in
Slot Size0.2 in
Slot TypeSlotted
Thickness0.1 in
Type1-Piece Type CWD
Documents
Applications
Used in the vertical corners of compact to large electrical control panels to route, conceal and protect electrical wiring
Features
- One-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures
- Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover
- Fits in the unused space in the vertical corner of enclosures, gaining sub-panel space or saving enclosure footprint area
- Panduit divider wall snaps directly to the integrated mounting feature in the channel to create two separate channel
- Compatible with Panduit 3 in and 4 in H wiring duct, both product sizes use standard 2 in wiring duct cover
- Metric halogen-free wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes
- Upper and lower score lines allows easy finger and sidewall section removals
- Provided with DIN 43 659 mounting holes
- Metric sizing and finger progression
- Duct and cover packaged together in two meter lengths
- High continuous use temperature
- The base sidewall is even with cover for superior aesthetics and greater wiring capacity when compared to non-flush cover wiring duct
- Base and finger score lines
Included
Base and Cover
