Panduit PV6-38R-T

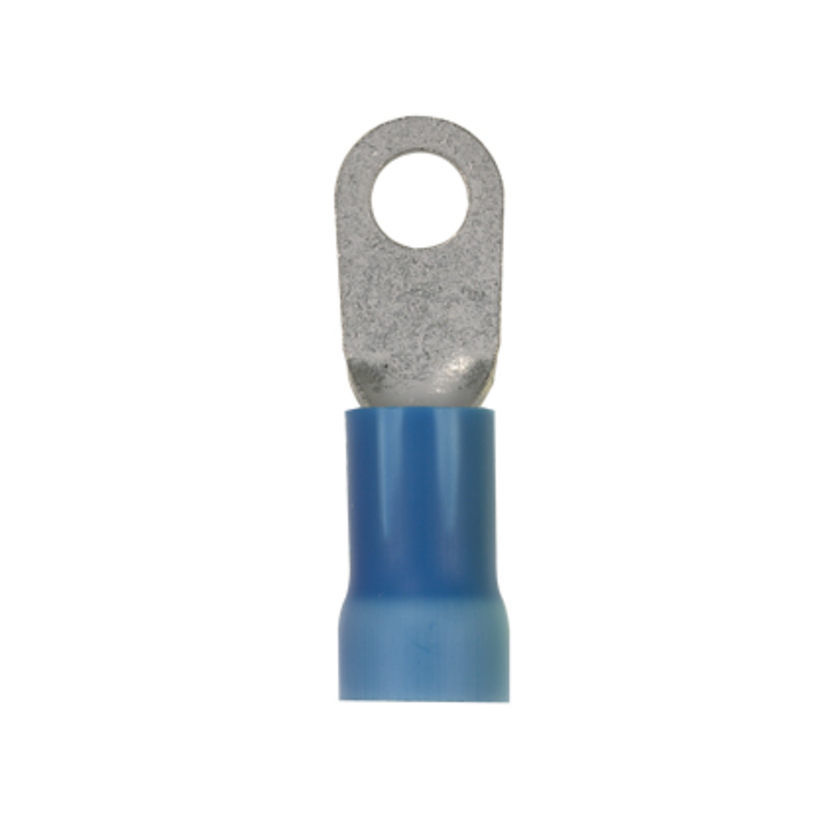

Panduit Pan-Term PV6-38R-T Loose Piece Ring Terminal, 6 AWG Conductor, 1.74 in L, Brazed Seam/Funnel Entry Barrel, Copper, Blue
Panduit PV6-38R-T
Panduit Pan-Term PV6-38R-T Loose Piece Ring Terminal, 6 AWG Conductor, 1.74 in L, Brazed Seam/Funnel Entry Barrel, Copper, BlueIn Stock: 200more info
|
BrandPanduit
MFG #PV6-38R-T
Werner Part #1097025
UPC074983871230
In Stock: 200more info
|
BrandPanduit
MFG #PV6-38R-T
Werner Part #1097025
UPC074983871230
Product Description
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-R, Stranded Conductor, 6 AWG Conductor, 3/8 in Stud, 1.74 in Length, Brazed Seam/Funnel Entry Barrel, Ring Tongue, 0.62 in W x 0.05 in THK Tongue, 600 V, Specifications: 7/16 in L Wire Strip, 0.51 in Clearance, 0.34 in Dia Vinyl Insulation, 0.43 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry
ColorBlue
Conductor size6 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions1.74 in L x 0.62 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height3.45 IN
Package Length8.15 in
Package Volume1728 cu-in
Package Weight2.5 lb
Package Width4.4 in
SeriesPV-R
Stud Size3/8 in
Temperature Rating221 deg F
Tongue Size0.62 in W x 0.05 in THK
Tongue TypeRing
TypeLoose Piece
Type / StyleType PV-R
Voltage Rating600 V
Applications
High Vibration Applications
Warranty
1 year
Features
- Terminals are self-insulated with a PVC (Vinyl) insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point
- Made of copper and has electro-tin plating for corrosion resistance
- Brazed seam barrel that is serrated to obtain high pullout value
- On Mylar tape
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
7/16 in L Wire Strip, 0.51 in Clearance, 0.34 in Dia Vinyl Insulation, 0.43 in Mounting Hole, Ring Shape Enclosure
