Panduit PV4-10RX-T

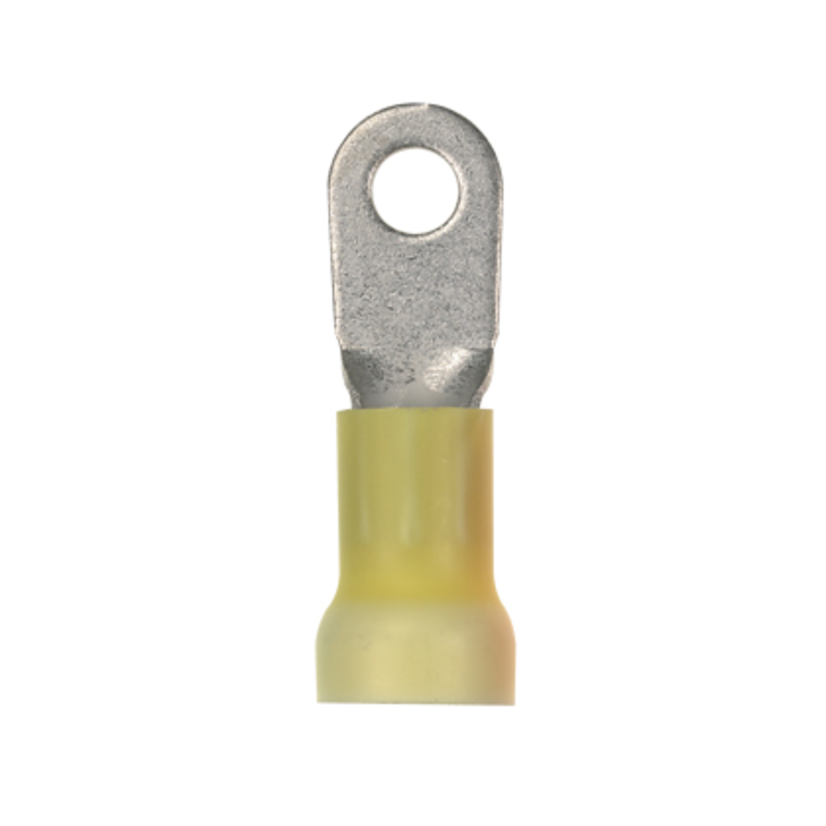

Panduit Pan-Term PV4-10RX-T Loose Piece Ring Terminal, 4 AWG Conductor, 1.87 in L, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Copper, Yellow
Panduit PV4-10RX-T
Panduit Pan-Term PV4-10RX-T Loose Piece Ring Terminal, 4 AWG Conductor, 1.87 in L, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV4-10RX-T
Werner Part #1106032
UPC074983870400
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PV4-10RX-T
Werner Part #1106032
UPC074983870400
Product Description
Panduit Pan-Term Ring Terminal, Loose Piece, Series: PV-RX, Stranded Conductor, 4 AWG Conductor, #10 Stud, 1.87 in Length, Brazed Seam/Expanded Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.55 in W x 0.05 in THK Tongue, 600 V, Specifications: 1/2 in L Wire Strip, 0.53 in Clearance, 0.515 in Dia Vinyl Insulation, 1/2 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Expanded Entry/Insulation Support/Internal Serration
ColorYellow
Conductor size4 AWG
Conductor TypeStranded
Country of OriginMX
Dimensions1.87 in L x 0.55 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height4 in
Package Length8 in
Package Volume1728 cu-in
Package Weight3.72 lb
Package Width4 in
SeriesPV-RX
Stud Size#10
Temperature Rating221 deg F
Tongue Size0.55 in W x 0.05 in THK
Tongue TypeRing
TypeLoose Piece
Type / StyleType PV-RX
Voltage Rating600 V
Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
1/2 in L Wire Strip, 0.53 in Clearance, 0.515 in Dia Vinyl Insulation, 1/2 in Mounting Hole, Ring Shape Enclosure
