Panduit PV18-10R-CY

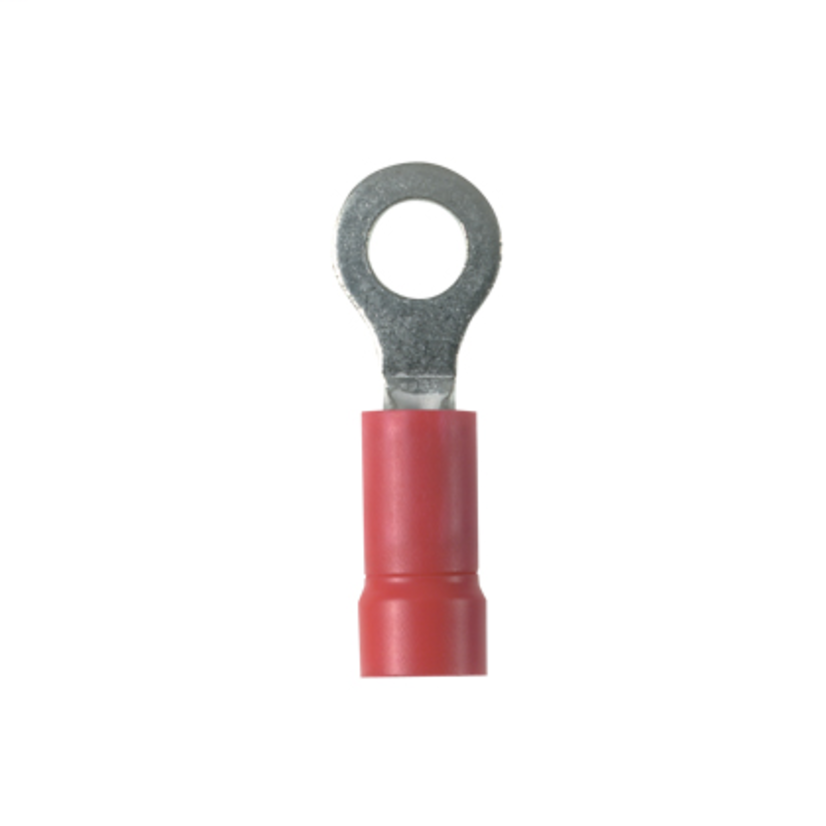

Panduit Pan-Term PV18-10R-CY Type PV-R Ring Terminal, 22 to 18 AWG Conductor, 0.94 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Red
Panduit PV18-10R-CY
Panduit Pan-Term PV18-10R-CY Type PV-R Ring Terminal, 22 to 18 AWG Conductor, 0.94 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, RedIn Stock: 400more info
|
BrandPanduit
MFG #PV18-10R-CY
Werner Part #2329598
UPC074983688500
In Stock: 400more info
|
BrandPanduit
MFG #PV18-10R-CY
Werner Part #2329598
UPC074983688500
Product Description
Panduit Pan-Term Ring Terminal, Type PV-R, Solid/Stranded Conductor, 22 to 18 AWG Conductor, #10 Stud, 0.94 in Length, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Ring Tongue, 0.31 in W x 0.8 in THK Tongue, 600 V AC, 0.15 in Dia Vinyl Insulation, 0.27 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Insulation Support/Internal Serration
ColorRed
Conductor size22 to 18 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions0.94 in L x 0.31 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.75 in
Package Length3.6 in
Package Volume20901.9 cu-in
Package Weight0.28 lb
Package Width1.8 IN
Stud Size#10
Temperature Rating221 deg F
Tongue Size0.31 in W x 0.8 in THK
Tongue TypeRing
TypeType PV-R
Type / StyleInsulated
Voltage Rating600 V AC
Documents
Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.15 in Dia Vinyl Insulation, 0.27 in Clearance, 5/16 in Mounting Hole Size, 5/16 in L Wire Strip, Ring Shape Enclosure
