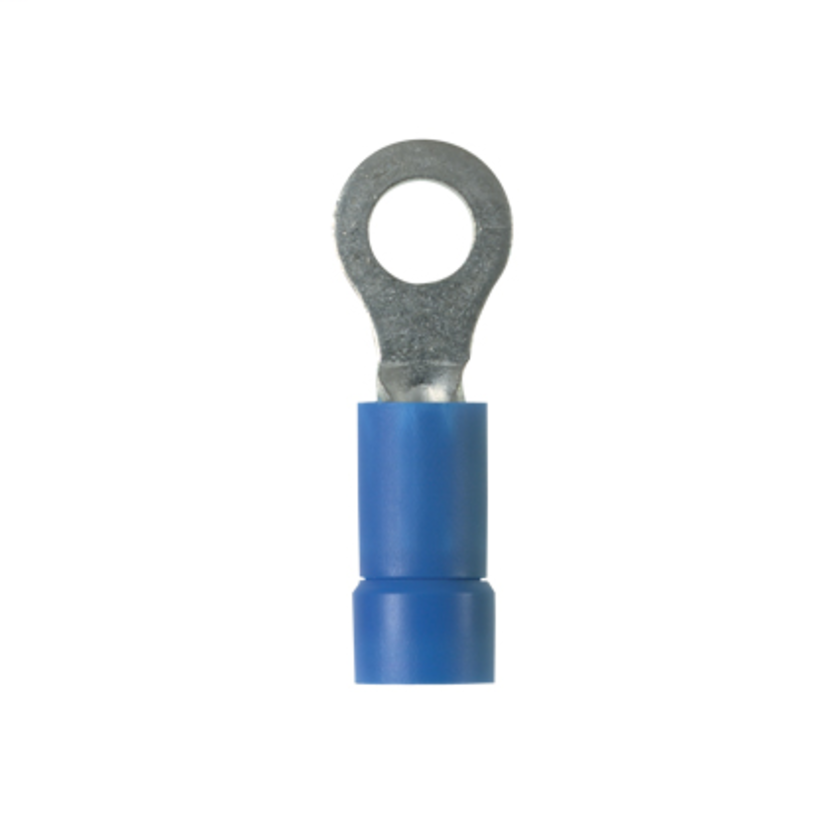

Panduit PV14-14R-C
Panduit® Pan-Term™ PV14-14R-C Type PV-R Terminal With 0.17 in Dia Vinyl Insulation, 16 to 14 AWG Conductor, 1.12 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Blue
Panduit PV14-14R-C
Panduit® Pan-Term™ PV14-14R-C Type PV-R Terminal With 0.17 in Dia Vinyl Insulation, 16 to 14 AWG Conductor, 1.12 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, BlueIn Stock: 700more info
|
BrandPanduit
MFG #PV14-14R-C
Werner Part #54757
UPC074983801220
In Stock: 700more info
|
BrandPanduit
MFG #PV14-14R-C
Werner Part #54757
UPC074983801220
Product Description
Panduit® Pan-Term™ Terminal, Type PV-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, 1/4 in Stud, 1.12 in Length, Brazed Seam/Funnel Entry/Insulation Support Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 VAC, 5/16 in L Wire Strip, 0.38 in Clearance, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Insulation Support/Internal Serration
ColorBlue
Conductor size14 AWG
Conductor TypeSolid/Stranded
Country of OriginMexico
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Temperature Rating221 deg F
Tongue Size0.46 in W x 0.03 in THK
Tongue TypeRing
TypeType PV-R Loose Piece
Type / StyleType PV-R
Voltage Rating600 V
Documents
Features
Insulation support helps to prevent wire damage in bending applicationsRing tongue design assures a secure connection in high vibration applicationsBrazed seam protects terminal barrel from splitting during the crimp processInternal barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.17 in Dia Vinyl Insulation, 5/16 in Mounting Hole Size, 0.38 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
