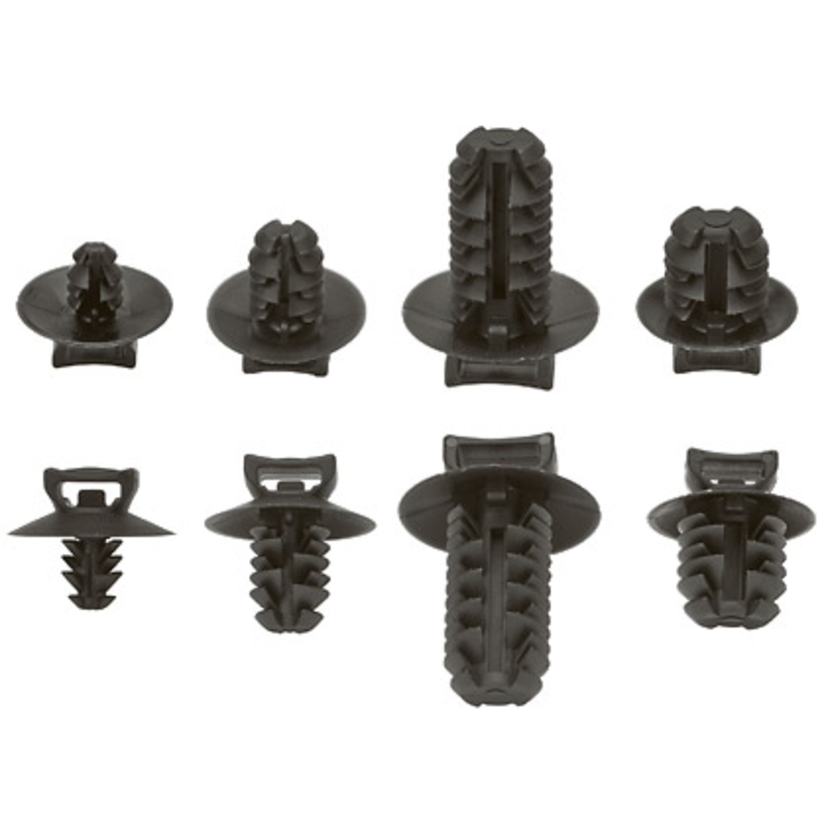

Panduit PUM-071-M30
Panduit Pan-Ty PUM-071-M30 Heat Stabilized Cable Tie Mount, Push Barb Mount, Nylon 6.6/Polyamide, Black
Panduit PUM-071-M30
Panduit Pan-Ty PUM-071-M30 Heat Stabilized Cable Tie Mount, Push Barb Mount, Nylon 6.6/Polyamide, BlackNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PUM-071-M30
Werner Part #3935992
UPC074983907915
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PUM-071-M30
Werner Part #3935992
UPC074983907915
Product Description
Panduit Pan-Ty Cable Tie Mount, Heat Stabilized, Push Barb Mounting, 0.67 in Base Length, Nylon 6.6/Polyamide, Black
Attributes
Documents
Applications
Features
Specifications
Attributes
Base Length0.67 in
Bundle Diameter4 in
ColorBlack
Country of OriginCR
Length14.2 in
Lock MechanismLocking
ManufacturerPanduit
MaterialNylon 6.6/Polyamide
SeriesBT Series
Temperature Rating-70 to 185 deg F
Tensile Strength18 lb
Thickness0.05 in
TypeHeat Stabilized
Type / StyleThrough Hole
Width0.18 in
Documents
Applications
They are a Reliable and Cost Effective Solution for Securing Wire Harnesses in The Automotive, Marine, White Goods, Heavy Equipment and Mass Transit-Rail Markets, Indoor Applications
Features
- Locks securely into position and can be rotated 360 deg, giving you a wider application range than fixed barb designs, also seals against dust and moisture
- Firmly retains a minimum wire gauge of 12 AWG (2 mm Dia) within +/- 10 mm (0.394 in) of the initial installation point, providing a low profile design
- Provide routing and anchoring for wire harnesses, ties significantly reducing harness assembly time
- Meets the needs of Verband der Automobilindustrie (VDA) and Automotive Industry Action Group (AIAG) compliant documentation, allowing parts to be listed in IMDS site ID
- Lock securely into position
- Umbrella tensioning
- Exclusive contoured anvil head
- Provides increased retention and lower insertion force, reducing operator fatigue and improving productivity
- For use with miniature, intermediate and standard cable tie
- They are a reliable and cost-effective solution for securing wire harnesses in the automotive, marine, white goods, heavy equipment and mass transit-rail markets
- It is made of heat stabilized nylon 6.6, which increases mechanical strength, heat and wear-resistance and stiffness
- Panduit pum-071-m30 fir tree push mounts have a unique alternating barb design that allows it to lock securely into position
- They require a panel hole diameter of 0.25 to 0.28 in (6.3 to 7.1 mm) for application
- For use in indoor and outdoor environment and with miniature, intermediate and standard cable tie
- Unique alternating barb design
- Exclusive contoured anvil head
- The fir tree push mount is black and requires a panel hole Dia of 0.25 to 0.28 in
- It is made of nylon material increases mechanical strength, heat, wear resistance and stiffness
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant
