Panduit PNF14-8LF-C

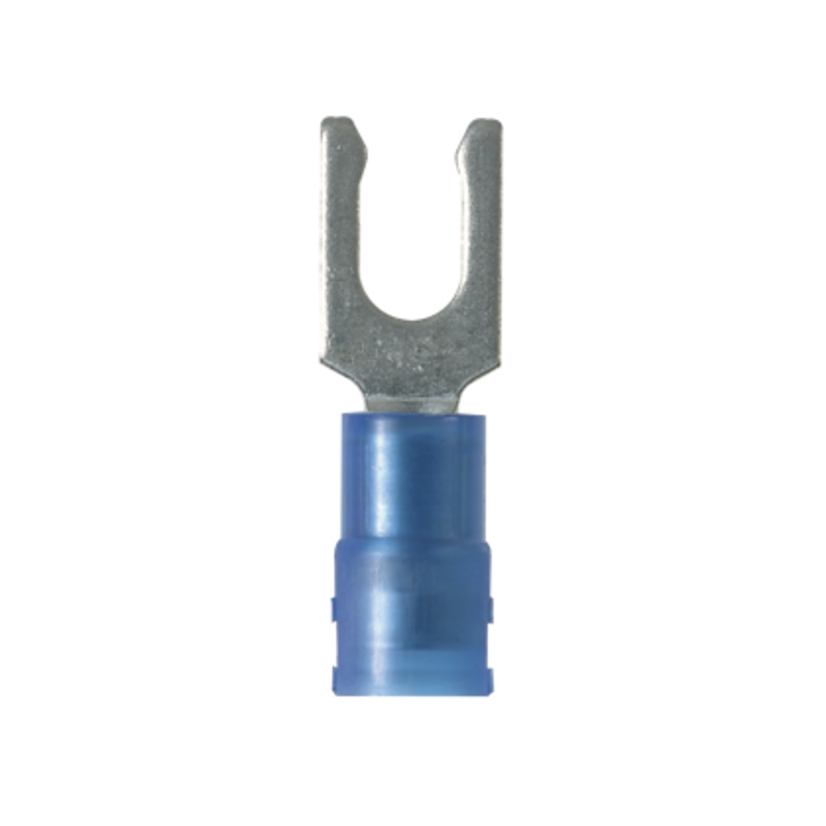

Panduit Pan-Term PNF14-8LF-C Loose Piece Fork Terminal, #14 Conductor, 0.93 in L, Funnel Entry/Sleeved Barrel, Copper, Blue
Panduit PNF14-8LF-C
Panduit Pan-Term PNF14-8LF-C Loose Piece Fork Terminal, #14 Conductor, 0.93 in L, Funnel Entry/Sleeved Barrel, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PNF14-8LF-C
Werner Part #4008507
UPC074983513642
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PNF14-8LF-C
Werner Part #4008507
UPC074983513642
Product Description
Panduit Pan-Term Fork Terminal, Loose Piece, Series: PNF-LF, Copper Stranded Conductor, #14 Conductor, #8 Stud, 0.93 in Length, Funnel Entry/Sleeved Barrel, Locking Fork Tongue, 0.29 in W x 0.03 in THK Tongue, 600 V, Specifications: 7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 1/4 in Clearance, Fork Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeFunnel Entry/Sleeved
ColorBlue
Conductor size#14
Conductor TypeCopper Stranded
Country of OriginMX
Dimensions0.93 in L x 0.29 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPNF-LF
Stud Size#8
Temperature Rating221 deg F
Tongue Size0.29 in W x 0.03 in THK
Tongue TypeLocking Fork
TypeLoose Piece
Type / StyleLoose Piece
Voltage Rating600 V
Documents
Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Locks in place for secure connection insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Flange design provides extra secure connection on a variety of applications
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Non-expanded insulation
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
7/32 in L Wire Strip, 0.08 to 0.162 in Dia Nylon Insulation, 1/4 in Clearance, Fork Shape Enclosure
