Panduit PNF14-14R-C

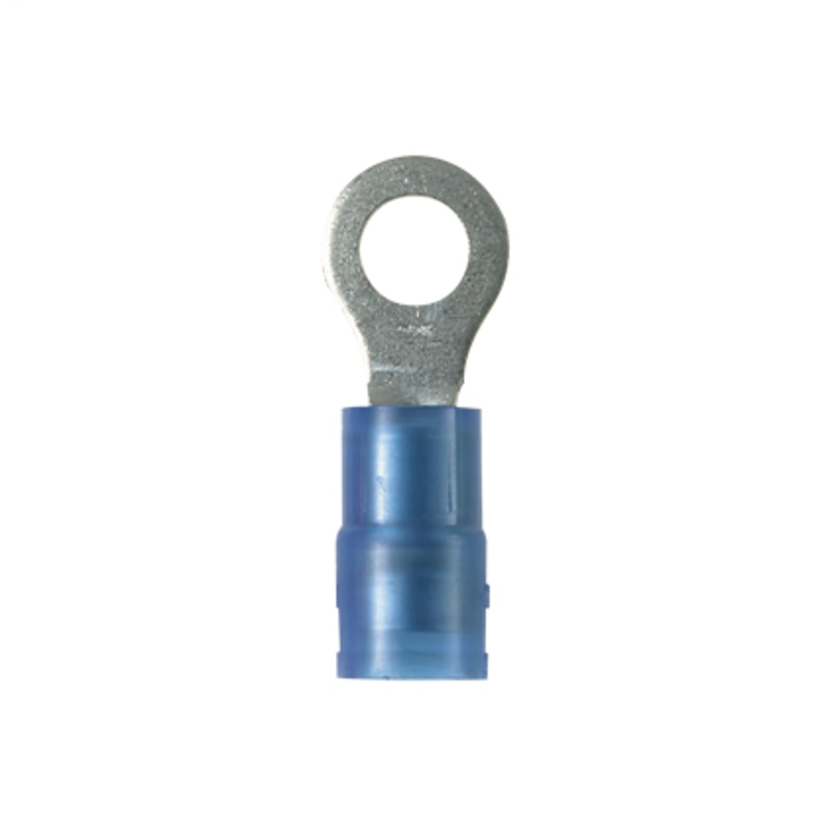

Panduit Pan-Term PNF14-14R-C Type PNF-R Ring Terminal, 14 AWG Conductor, 1.06 in L, Brazed Seam/Funnel Entry/Seamed/Internal Serration Barrel, Copper, Blue
Panduit PNF14-14R-C
Panduit Pan-Term PNF14-14R-C Type PNF-R Ring Terminal, 14 AWG Conductor, 1.06 in L, Brazed Seam/Funnel Entry/Seamed/Internal Serration Barrel, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PNF14-14R-C
Werner Part #1101913
UPC074983513284
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PNF14-14R-C
Werner Part #1101913
UPC074983513284
Product Description
Panduit Pan-Term Ring Terminal, Type PNF-R, Solid/Stranded Conductor, 14 AWG Conductor, 1/4 in Stud, 1.06 in Length, Brazed Seam/Funnel Entry/Seamed/Internal Serration Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Seamed/Internal Serration
ColorBlue
Conductor size14 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions1.06 in L x 0.46 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Stud Size1/4 in
Temperature Rating221 deg F
Tongue Size0.46 in W x 0.03 in THK
Tongue TypeRing
TypeType PNF-R
Type / StyleType PNF-R
Voltage Rating600 V
Documents
Applications
High Vibration Applications
Warranty
1 year
Features
- Insulug type YAE-N nylon insulated terminals are designed with a multi-finger insulation grip for paper, EPR and other elastic or hard to grip insulations
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics, cable support and strain relief
- Type YAE-N terminals are rated 105 deg C and meet military standard AS25036 Class 2 and SAE-AS7928 requirements
- Multi-finger insulation grip - Provides superior insulation holding characteristics
- Especially on epr and other elastic-type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity, low resistance and ductility for excellent crimp forming properties, deep V groove
- Inner barrel serrations, provide optimum conductivity, reliability and holding power, smooth funnel entry - easy wire insertion
- For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
- Natural with appropriate color stripe to identify wire range
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Specifications
0.162 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.4 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
