Panduit PNF10-56R-L

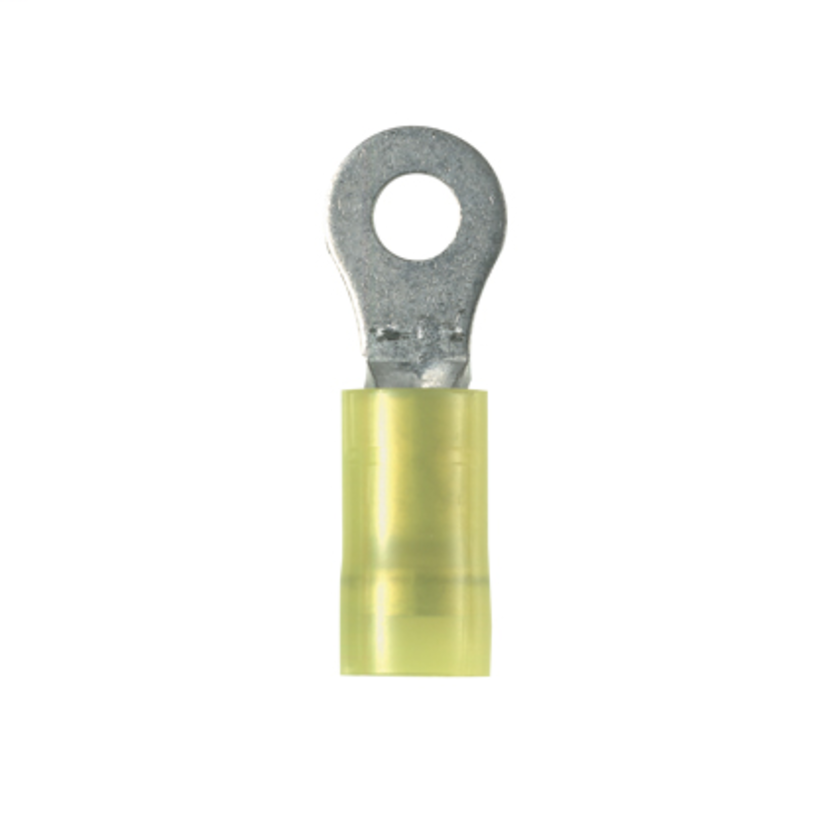

Panduit Pan-Term PNF10-56R-L Type PNF-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, Yellow
Panduit PNF10-56R-L
Panduit Pan-Term PNF10-56R-L Type PNF-R Loose Piece Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Pan-Term Ring Terminal, Type PNF-R Loose Piece, Solid/Stranded Conductor, 10 AWG Conductor, 5/16 in Stud, 1.21 in Length, Brazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Funnel Entry/Insulation Grip Sleeve/Internal Serration
ColorYellow
Conductor size10 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions1.21 in L x 0.52 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.9 IN
Package Length4.35 IN
Package Volume17.28 cu-in
Package Weight0.35 lb
Package Width1.95 in
Stud Size5/16 in
Temperature Rating221 deg F
Tongue Size0.52 in W x 0.04 in THK
Tongue TypeRing
TypeType PNF-R Loose Piece
Type / StyleType PNF-R
Voltage Rating600 V
Documents
Applications
High Vibration Applications
Warranty
1 year
Features
- Nylon insulation INSULUG type YAE-N nylon insulated terminals are designed with a multi-finger insulation grip for paper
- EPR and other elastic or hard to grip Insulations
- The metal fingers firmly grip the insulation providing superior holding characteristics
- Cable support and strain relief
- Multi-finger insulation grip provides superior insulation holding characteristics
- Especially on epr and other elastic-type insulations
- Brazed seam provides stronger more durable termination
- Manufactured of pure electrolytic copper provides maximum conductivity
- Low resistance and ductility for excellent crimp forming properties
- Deep V groove
- Inner barrel serrations provide optimum conductivity
- For use on 600 V maximum, 105 deg C maximum operating temperature
- Pure electrolytic copper
- For nuclear containment areas and high temperature to 300 deg F (150 deg C) applications
- Natural with appropriate color stripe to identify wire range
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Specifications
0.225 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure
