Panduit PN18-56R-C

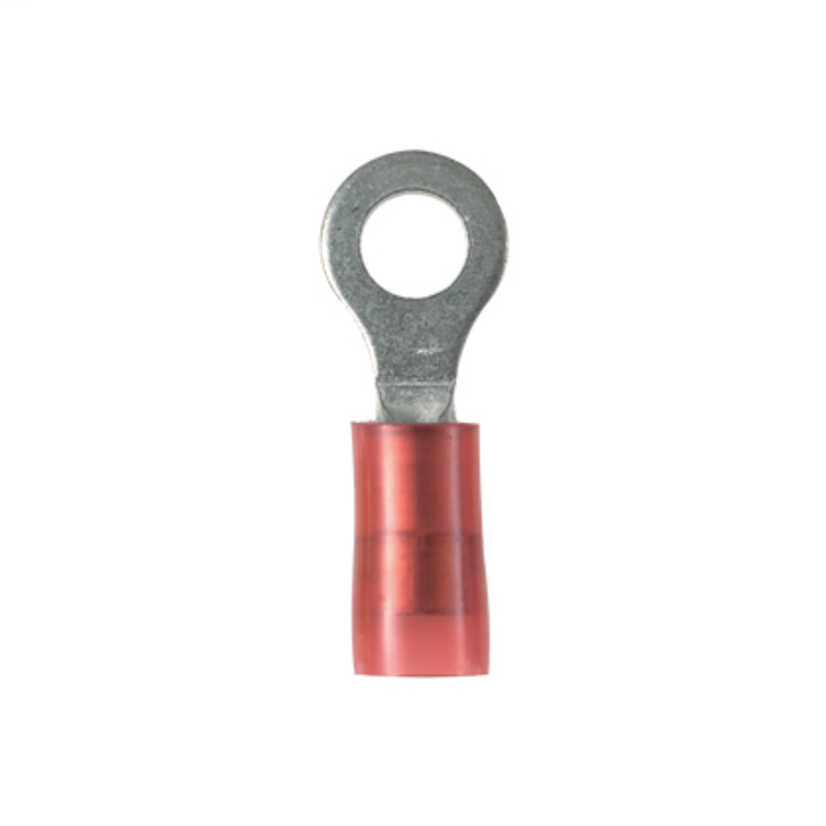

Panduit Pan-Term PN18-56R-C Type PN-R Reel Ring Terminal, 22 AWG Conductor, 1.09 in L, Seamed/Standard/Insulation Grip Sleeve Barrel, Copper, Red
Panduit PN18-56R-C
Panduit Pan-Term PN18-56R-C Type PN-R Reel Ring Terminal, 22 AWG Conductor, 1.09 in L, Seamed/Standard/Insulation Grip Sleeve Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PN18-56R-C
Werner Part #1101986
UPC074983800100
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PN18-56R-C
Werner Part #1101986
UPC074983800100
Product Description
Panduit Pan-Term Ring Terminal, Type PN-R Reel, Solid/Stranded Conductor, 22 AWG Conductor, 5/16 in Stud, 1.09 in Length, Seamed/Standard/Insulation Grip Sleeve Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 600 V, Specifications: 0.145 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.38 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Red
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel TypeSeamed/Standard/Insulation Grip Sleeve
ColorRed
Conductor size22 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions27.7 in L x 0.46 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.9 IN
Package Length4.35 IN
Package Volume29859.8 cu-in
Package Weight0.3 lb
Package Width1.95 in
Stud Size5/16 in
Temperature Rating221 deg F
Tongue Size0.46 in W x 0.03 in THK
Tongue TypeRing
TypeType PN-R Reel
Type / StyleType PN-R
Voltage Rating600 V
Documents
Applications
High Vibration Applications
Warranty
1 year
Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.145 in Dia Nylon Insulation, 0.21 in Mounting Hole Size, 0.38 in Clearance, 7/32 in L Wire Strip, Ring Shape Enclosure
