Panduit PN12-14HDR-L

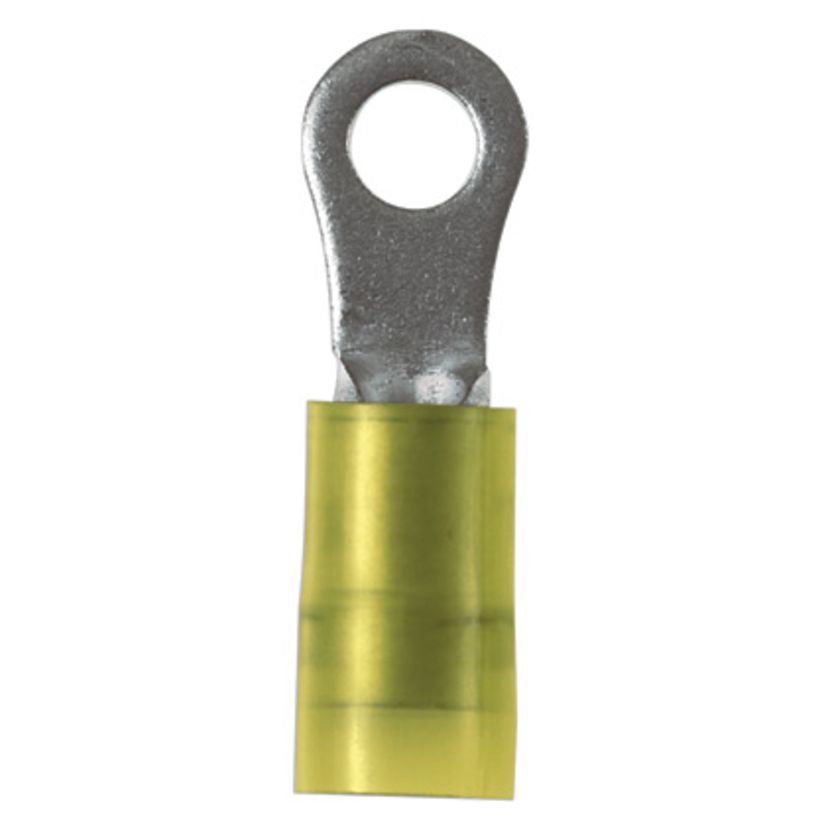

Panduit Pan-Term PN12-14HDR-L Heavy Duty Ring Terminal, 16 to 12 AWG Conductor, 1.24 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Yellow
Panduit PN12-14HDR-L
Panduit Pan-Term PN12-14HDR-L Heavy Duty Ring Terminal, 16 to 12 AWG Conductor, 1.24 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PN12-14HDR-L
Werner Part #4009107
UPC074983802913
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PN12-14HDR-L
Werner Part #4009107
UPC074983802913
Product Description
Panduit Pan-Term Ring Terminal, Heavy Duty, Series: PN-HDR, Solid/Stranded Conductor, 16 to 12 AWG Conductor, 1/4 in Stud, 1.24 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.52 in W x 0.05 in THK Tongue, 600 V, Specifications: 9/32 in L Wire Strip, 0.42 in Clearance, 0.225 in Dia Nylon Insulation, 0.28 in Mounting Hole, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Insulation Grip Sleeve/Internal Serration/Standard
ColorYellow
Conductor size16 to 12 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions1.24 in L x 0.52 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.95 in
Package Length4.35 IN
Package Volume29859.8 cu-in
Package Weight0.41 lb
Package Width1.95 in
SeriesPN-HDR
Stud Size1/4 in
Temperature Rating221 deg F
Tongue Size0.52 in W x 0.05 in THK
Tongue TypeRing
TypeHeavy Duty
Type / StyleType PN-HDR Heavy-Duty
Voltage Rating600 V
Documents
Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
9/32 in L Wire Strip, 0.42 in Clearance, 0.225 in Dia Nylon Insulation, 0.28 in Mounting Hole, Ring Shape Enclosure
