Panduit PN10-14R-L

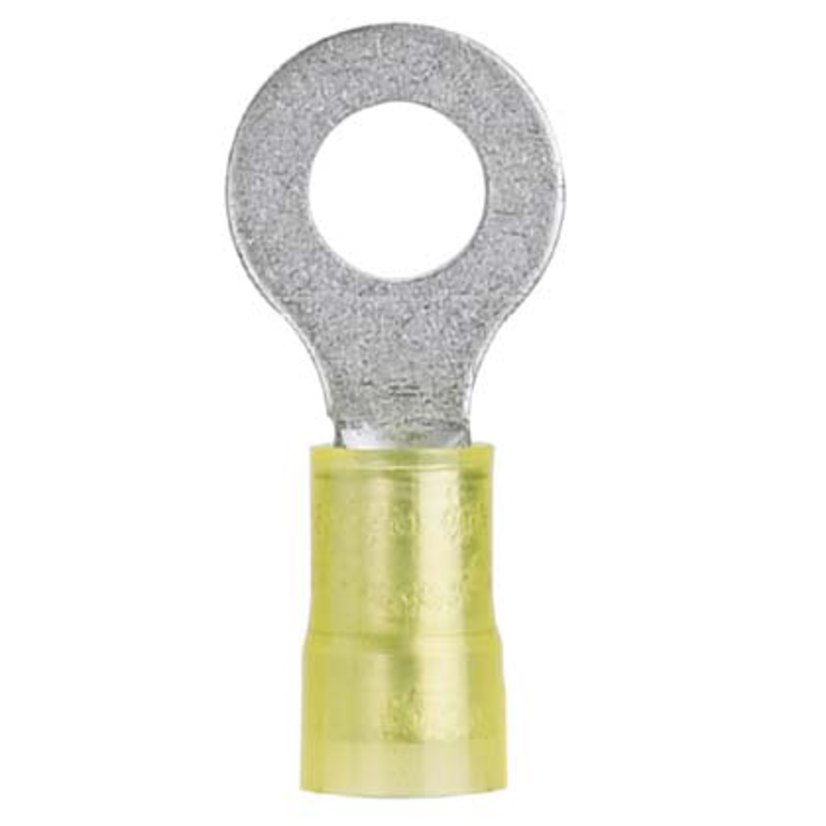

Panduit Pan-Term PN10-14R-L Type PN-R Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Yellow
Panduit PN10-14R-L
Panduit Pan-Term PN10-14R-L Type PN-R Ring Terminal, 10 AWG Conductor, 1.21 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, YellowIn Stock: 800more info
|
In Stock: 800more info
|
Product Description
Panduit Pan-Term Ring Terminal, Type PN-R, Solid/Stranded Conductor, 10 AWG Conductor, 1/4 in Stud, 1.21 in Length, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Ring Tongue, 0.52 in W x 0.04 in THK Tongue, 600 V, Specifications: 0.225 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure, 221 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel TypeBrazed Seam/Insulation Grip Sleeve/Internal Serration/Standard
ColorYellow
Conductor size10 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions1.21 in L x 0.52 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.9 IN
Package Length4.3 in
Package Volume29859.8 cu-in
Package Weight0.34 lb
Package Width1.95 in
Stud Size1/4 in
Temperature Rating221 deg F
Tongue Size0.52 in W x 0.04 in THK
Tongue TypeRing
TypeType PN-R
Type / StyleType PN-R
Voltage Rating600 V
Documents
Applications
High Vibration Applications
Warranty
1 year
Features
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.225 in Dia Nylon Insulation, 9/32 in Mounting Hole Size, 0.38 in Clearance,, 9/32 in L Wire Strip, Ring Shape Enclosure
