Panduit PMV2-3FB-C

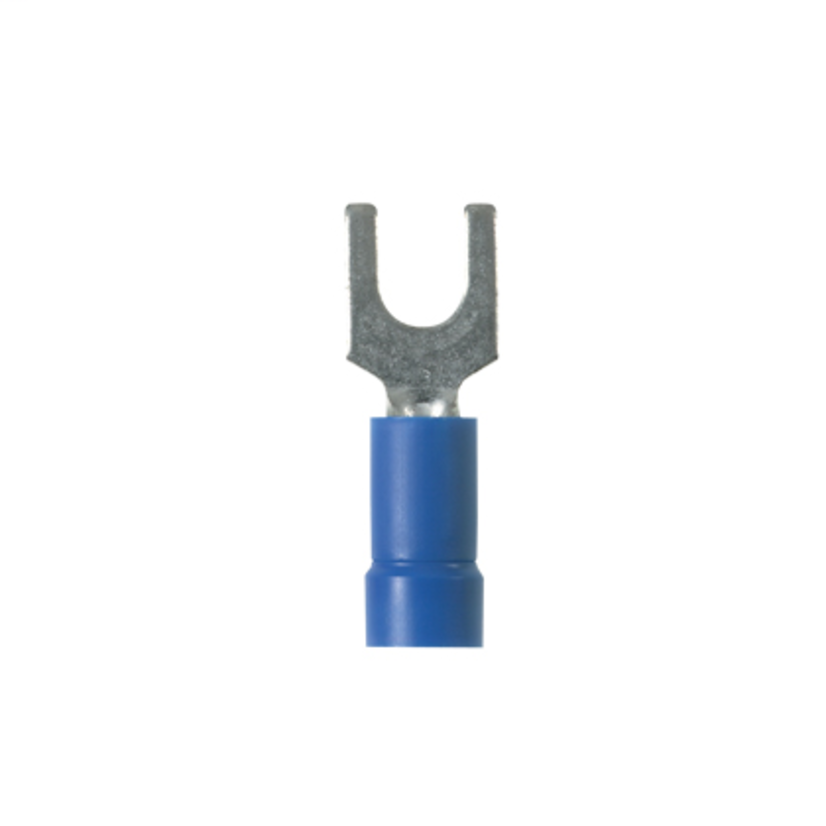

Panduit Pan-Term PMV2-3FB-C Type PMV-FB Loose Piece Metric Fork Terminal, 14 AWG Conductor, 0.78 in L, Butted Seam/Funnel Entry Barrel, Copper, Blue
Panduit PMV2-3FB-C
Panduit Pan-Term PMV2-3FB-C Type PMV-FB Loose Piece Metric Fork Terminal, 14 AWG Conductor, 0.78 in L, Butted Seam/Funnel Entry Barrel, Copper, BlueNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Pan-Term Fork Terminal, Type PMV-FB Loose Piece Metric, Stranded Copper Conductor, 14 AWG Conductor, M3 Stud, 0.78 in Length, Butted Seam/Funnel Entry Barrel, Fork Tongue, 0.23 in W x 0.032 in THK Tongue, 600 V AC, Specifications: 5/16 in L Wire Strip, 4.7 mm Dia Vinyl Insulation, 4.8 mm Clearance, 0.31 in Mounting Hole, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Features
Specifications
Attributes
Barrel TypeButted Seam/Funnel Entry
ColorBlue
Conductor size14 AWG
Conductor TypeStranded Copper
Country of OriginMX
Dimensions0.84 in L x 0.23 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPMV-FB
Stud SizeM3
Temperature Rating221 deg F
Tongue Size0.23 in W x 0.032 in THK
Tongue TypeFork
TypeType PMV-FB Loose Piece Metric
Type / StyleLoose Piece Metric
Voltage Rating600 V AC
Documents
Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
5/16 in L Wire Strip, 4.7 mm Dia Vinyl Insulation, 4.8 mm Clearance, 0.31 in Mounting Hole
