Panduit PH18-8R-Q

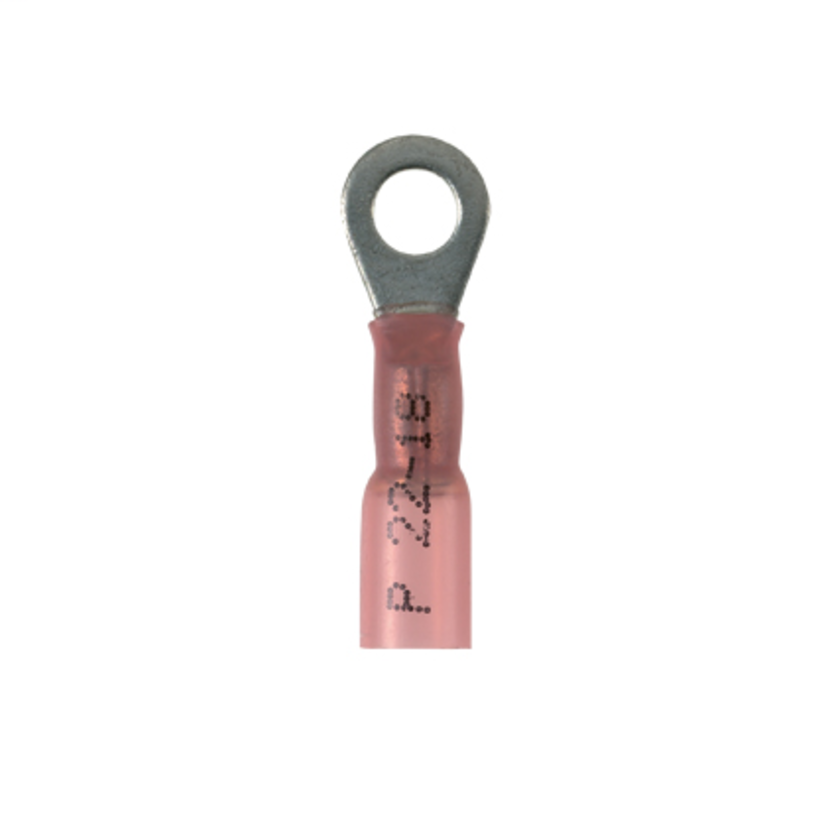

Panduit Pan-Term PH18-8R-Q Type PH-R Heat Shrink Insulated Ring Terminal, 18 AWG Conductor, 1.08 in L, Brazed Seam/Standard Barrel, Copper, Red
Panduit PH18-8R-Q
Panduit Pan-Term PH18-8R-Q Type PH-R Heat Shrink Insulated Ring Terminal, 18 AWG Conductor, 1.08 in L, Brazed Seam/Standard Barrel, Copper, RedNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH18-8R-Q
Werner Part #3964780
UPC074983818013
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH18-8R-Q
Werner Part #3964780
UPC074983818013
Product Description
Panduit Pan-Term Ring Terminal, Type PH-R Heat Shrink Insulated, 18 AWG Conductor, #8 Stud, 1.08 in Length, Brazed Seam/Standard Barrel, 1/4 in L Barrel, Ring Tongue, 0.31 in W Tongue, 600 V, Specifications: 0.38 in Mounting Hole Size, 1.08 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 230 deg F, Copper, Tin Plated, Red
Attributes
Documents
Features
Specifications
Attributes
Barrel Size1/4 in L
Barrel TypeBrazed Seam/Standard
ColorRed
Conductor size18 AWG
Country of OriginUS
Dimensions1.08 in L x 0.31 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPH-R
Stud Size#8
Temperature Rating230 deg F
Tongue Size0.31 in W
Tongue TypeRing
TypeType PH-R Heat Shrink Insulated
Type / StyleInsulated
Voltage Rating600 V
Documents
Features
- Heat shrinkable polyolefin insulated with hot melt sealant
- Standard barrel configuration
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
- 300 deg F shrink temperature
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Heat shrink installation is completed with a standard heat gun
- Shrink temperature of 300 deg F (150 deg C)
- Heat shrink polyolefin with hot melt sealant
- Adhesive lined heat shrink
- Heat shrink insulated terminals are both air and water tight
Specifications
0.38 in Mounting Hole Size, 1.08 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
