Panduit PH14-10R-Q

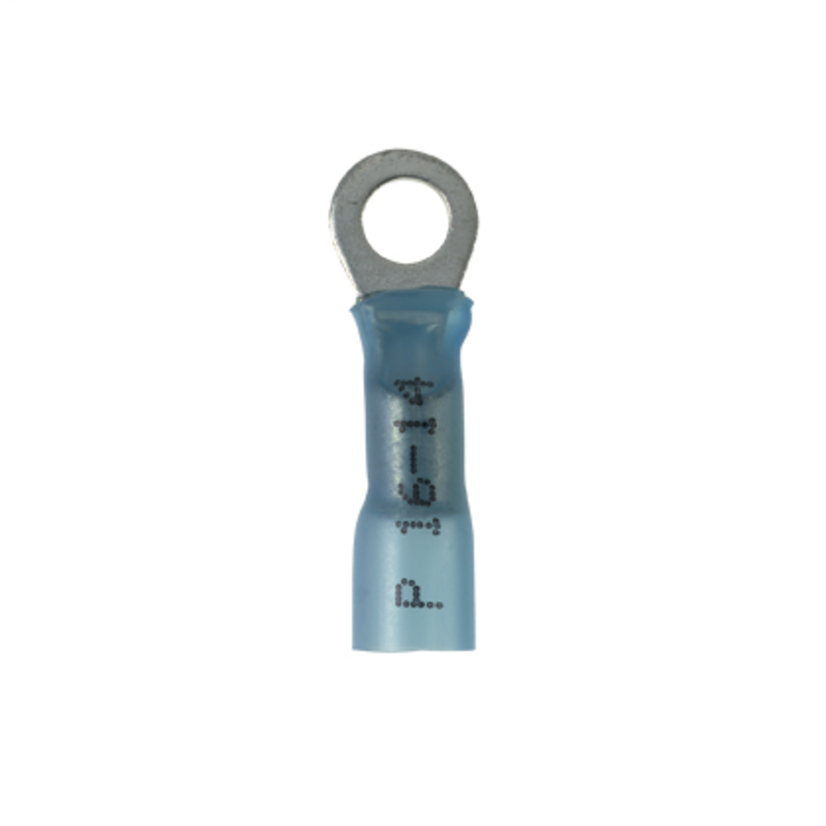

Panduit Pan-Term PH14-10R-Q Type PH-R Heat Shrink Insulated Ring Terminal, 14 AWG Conductor, 1.05 in L, Brazed Seam/Standard Barrel, Copper, Blue
Panduit PH14-10R-Q
Panduit Pan-Term PH14-10R-Q Type PH-R Heat Shrink Insulated Ring Terminal, 14 AWG Conductor, 1.05 in L, Brazed Seam/Standard Barrel, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH14-10R-Q
Werner Part #3964778
UPC074983818068
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH14-10R-Q
Werner Part #3964778
UPC074983818068
Product Description
Panduit Pan-Term Ring Terminal, Type PH-R Heat Shrink Insulated, 14 AWG Conductor, #10 Stud, 1.05 in Length, Brazed Seam/Standard Barrel, 1/4 in L Barrel, Ring Tongue, 0.32 in W Tongue, 600 V, Specifications: 0.38 in Mounting Hole Size, 1.05 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 230 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel Size1/4 in L
Barrel TypeBrazed Seam/Standard
ColorBlue
Conductor size14 AWG
Country of OriginUS
Dimensions1.05 in L x 0.32 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesPH Series
Stud Size#10
Temperature Rating230 deg F
Tongue Size0.32 in W
Tongue TypeRing
TypeType PH-R Heat Shrink Insulated
Type / StyleInsulated
Voltage Rating600 V
Applications
High Vibration Applications
Warranty
1 year
Features
- Heat shrinkable polyolefin insulated with hot melt sealant
- Standard barrel configuration
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
- 300 deg F shrink temperature
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
Specifications
0.38 in Mounting Hole Size, 1.05 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
