Panduit PH10-38R-E

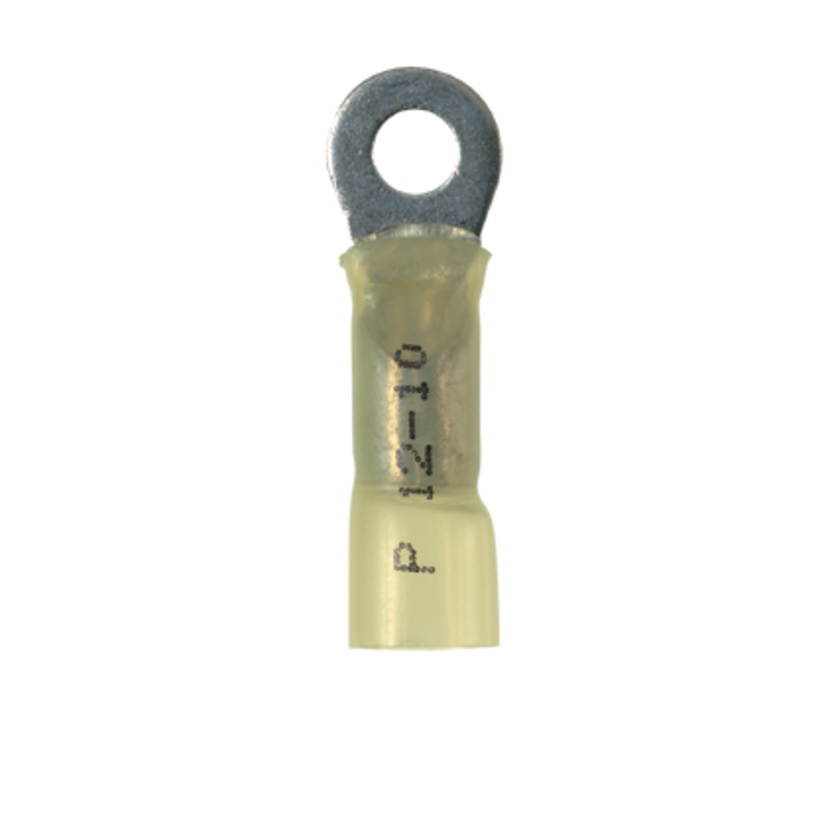

Panduit Pan-Term PH10-38R-E Type PH-R Heat Shrink Insulated Ring Terminal, 10 AWG Conductor, 1.2 in L, Brazed Seam/Standard Barrel, Copper, Yellow
Panduit PH10-38R-E
Panduit Pan-Term PH10-38R-E Type PH-R Heat Shrink Insulated Ring Terminal, 10 AWG Conductor, 1.2 in L, Brazed Seam/Standard Barrel, Copper, YellowNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH10-38R-E
Werner Part #1095860
UPC074983818136
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #PH10-38R-E
Werner Part #1095860
UPC074983818136
Product Description
Panduit Pan-Term Ring Terminal, Type PH-R Heat Shrink Insulated, 10 AWG Conductor, 3/8 in Stud, 1.2 in Length, Brazed Seam/Standard Barrel, 1/4 in L Barrel, Ring Tongue, 0.59 in W Tongue, 600 V, Specifications: 0.38 in Mounting Hole Size, 1.2 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure, 230 deg F, Copper, Tin Plated, Yellow
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel Size1/4 in L
Barrel TypeBrazed Seam/Standard
ColorYellow
Conductor size10 AWG
Country of OriginUS
Dimensions1.2 in L x 0.59 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.95 in
Package Length4.1 IN
Package Volume12.1 cu-in
Package Weight0.16 lb
Package Width2.55 IN
Stud Size3/8 in
Temperature Rating230 deg F
Tongue Size0.59 in W
Tongue TypeRing
TypeType PH-R Heat Shrink Insulated
Type / StyleInsulated
Voltage Rating600 V
Documents
Applications
High Vibration Applications
Warranty
1 year
Features
- Heat shrinkable polyolefin insulated with hot melt sealant
- Standard barrel configuration
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
- 300 deg F shrink temperature
- Heat shrink sleeving forms a protective barrier to provide environmentally sealed terminations ideal for high moisture applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Heat shrink installation is completed with a standard heat gun
Specifications
0.38 in Mounting Hole Size, 1.2 in Clearance, 5/16 in L Wire Strip, Ring Shape Enclosure
