Panduit P18-56R-C

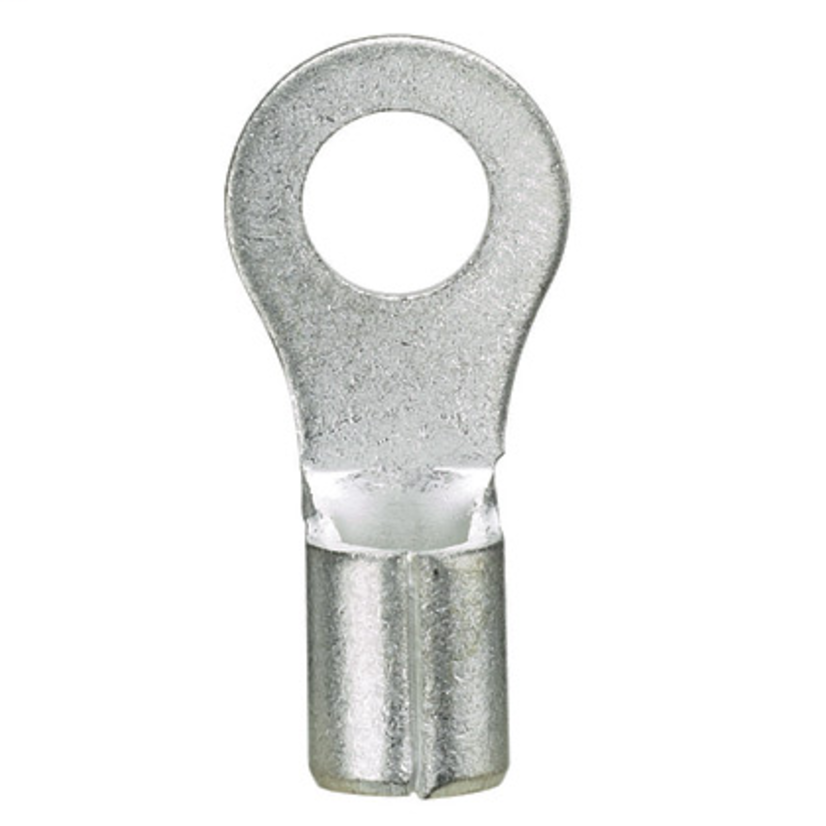

Panduit Pan-Term P18-56R-C Type P-R Non-Insulated Ring Terminal, 18 AWG Conductor, 0.91 in L, Brazed Seam/Internal Serration/Standard Barrel, Copper, Silver
Panduit P18-56R-C
Panduit Pan-Term P18-56R-C Type P-R Non-Insulated Ring Terminal, 18 AWG Conductor, 0.91 in L, Brazed Seam/Internal Serration/Standard Barrel, Copper, SilverInventory Not Available
Inventory Not Available
Product Description
Panduit Pan-Term Ring Terminal, Type P-R Non-Insulated, Solid/Stranded Conductor, 18 AWG Conductor, 5/16 in Stud, 0.91 in Length, Brazed Seam/Internal Serration/Standard Barrel, 0.7 in ID x 0.14 in OD Barrel, Ring Tongue, 0.46 in W x 0.03 in THK Tongue, 2000 V, Specifications: 0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure, 302 deg F, Copper, Tin Plated, Silver
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Barrel Size0.7 in ID x 0.14 in OD
Barrel TypeBrazed Seam/Internal Serration/Standard
ColorSilver
Conductor size18 AWG
Conductor TypeSolid/Stranded
Country of OriginMX
Dimensions0.91 in L x 0.46 in W
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Stud Size5/16 in
Temperature Rating302 deg F
Tongue Size0.46 in W x 0.03 in THK
Tongue TypeRing
TypeType P-R Non-Insulated
Type / StyleType P-R
Voltage Rating2000 V
Documents
Applications
For CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160 and CT-260 crimp tool
Warranty
1 year
Features
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Expanded insulation for large wire OD
- Manufactured from stock 56% thicker than a standard 16 to 14 AWG terminal for use in heavy duty application
- Insulation housing is marked with HDR to signify heavy duty ring
- Ring tongue design assures a secure connection in high vibration applications
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
0.28 in Mounting Hole Size, 0.38 in Clearance, 9/32 in L Wire Strip, Ring Shape Enclosure
