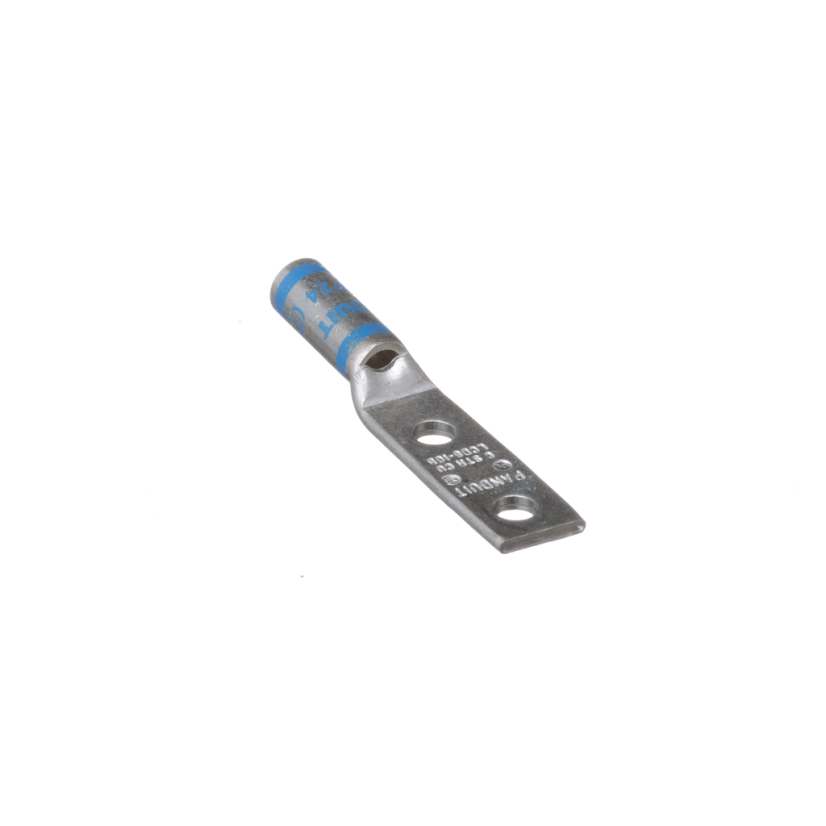

Panduit LCD6-10B-L

Panduit Pan-Lug LCD6-10B-L 2-Hole Compression Connector Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, 0.19 in Stud, Tin Plated Copper
Panduit Pan-Lug LCD6-10B-L 2-Hole Compression Connector Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, 0.19 in Stud, Tin Plated Copper

Panduit LCD6-10B-L

Panduit Pan-Lug LCD6-10B-L 2-Hole Compression Connector Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, 0.19 in Stud, Tin Plated Copper
Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCD6-10B-L

Werner Part #4004215

UPC074983439348

Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCD6-10B-L

Werner Part #4004215

UPC074983439348

Product Description

Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 0.19 in Stud, Straight Tongue, 0.46 in W x 0.08 in THK Tongue, 2.27 in Overall Length, Standard Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 3/4 in Stud Hole Spacing, 7/8 in L Wire Strip, 90 deg C, 42.954 in Mounting Hole, Tin Plated Copper, Blue
Attributes
Barrel Size0.22 in ID x 0.31 in OD x 0.81 in L
Barrel TypeStandard
ColorBlue
Conductor size6 AWG
Conductor TypeStranded Copper
Country of OriginMX
Die CodeP24
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type42.954 in
Overall Length2.27 in
Package Height3.4 IN
Package Length4.9 IN
Package Volume98537.5 cu-in
Package Weight1.38 lb
Package Width3.4 in
SeriesLCD
Stud Size0.19 in
Temperature Rating90 deg C
Tongue Size0.46 in W x 0.08 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
