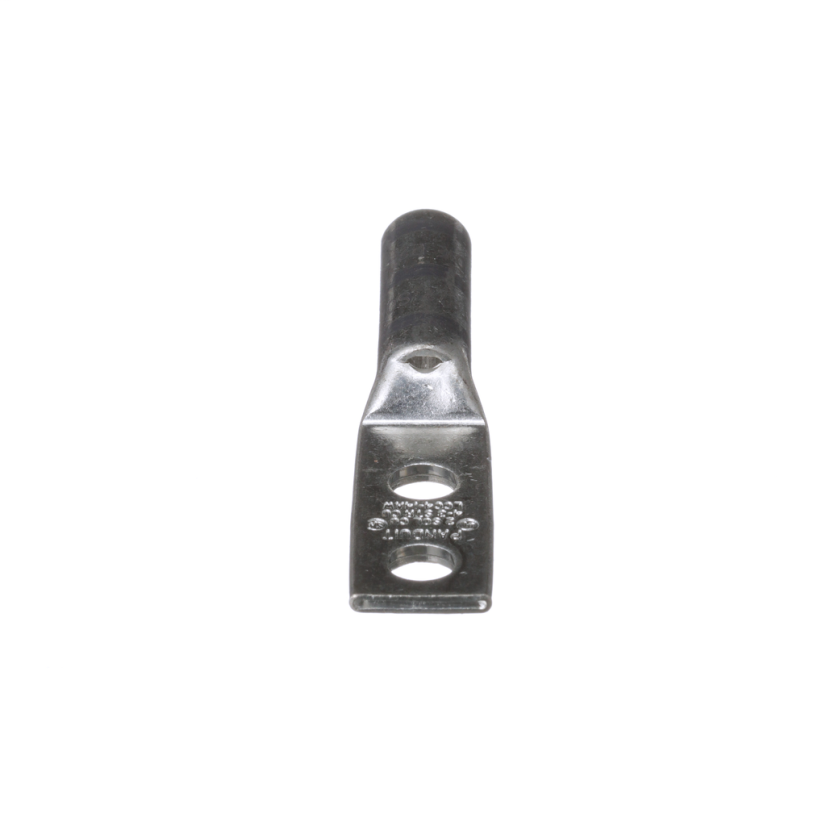

Panduit LCC4-14AW-L

Panduit Pan-Lug LCC4-14AW-L LCC-W 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.826 in Stud, Tin Plated Copper
Panduit Pan-Lug LCC4-14AW-L LCC-W 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.826 in Stud, Tin Plated Copper

Panduit LCC4-14AW-L

Panduit Pan-Lug LCC4-14AW-L LCC-W 2-Hole Compression Connector Lug With Inspection Window, 4 to 3 AWG, 2 AWG Solid/Stranded Copper Conductor, Die Code: P29, 42.826 in Stud, Tin Plated Copper
Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCC4-14AW-L

Werner Part #3971472

UPC074983797837

Non-stock product. Available to order - lead time may vary.

BrandPanduit

MFG #LCC4-14AW-L

Werner Part #3971472

UPC074983797837

Product Description

Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 42.826 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2-1/2 in Overall Length, Long Barrel, 0.28 in ID x 0.38 in OD x 1.05 in L Barrel, Specifications: 0.63 in Stud Hole Spacing, 1-1/8 in L Wire Strip, 90 deg C, 1.13 in Mounting Hole, Tin Plated Copper, Gray
Attributes
Barrel Size0.28 in ID x 0.38 in OD x 1.05 in L
Barrel TypeLong
ColorGray
Conductor size4 to 3 AWG, 2 AWG
Conductor TypeSolid/Stranded Copper
Country of OriginMX
Die CodeP29
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1.13 in
Overall Length2-1/2 in
SeriesLCC-W
Stud Size42.826 in
Temperature Rating90 deg C
Tongue Size0.55 in W x 0.09 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
