Panduit LCC1/0-38DW-X

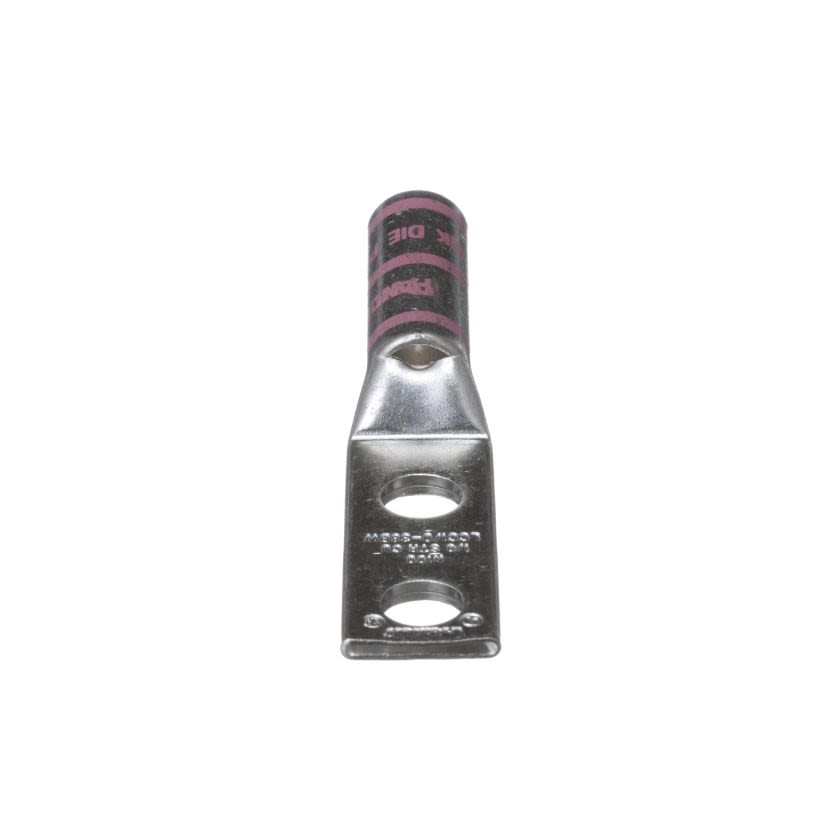

Panduit Pan-Lug LCC1/0-38DW-X LCC-W 2-Hole Compression Connector Lug, 1/0 AWG Copper Conductor, Die Code: P42, 42.95 in Stud, Tin Plated Copper
Panduit LCC1/0-38DW-X
Panduit Pan-Lug LCC1/0-38DW-X LCC-W 2-Hole Compression Connector Lug, 1/0 AWG Copper Conductor, Die Code: P42, 42.95 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCC1/0-38DW-X
Werner Part #3968111
UPC074983798124
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCC1/0-38DW-X
Werner Part #3968111
UPC074983798124
Product Description
Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCC-W, Copper Conductor, 1/0 AWG Conductor, Die Code: P42, 35 kV, 42.95 in Stud, Straight Tongue, 0.76 in W x 0.12 in THK Tongue, 3.57 in Overall Length, Long Barrel, 0.39 in ID x 0.52 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, 1 in Stud Hole Spacing, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Pink
Attributes
Documents
Features
Specifications
Attributes
Barrel Size0.39 in ID x 0.52 in OD x 1.44 in L
Barrel TypeLong
ColorPink
Conductor size1/0 AWG
Conductor TypeCopper
Country of OriginMX
Die CodeP42
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-1/2 in
Overall Length3.57 in
SeriesLCC-W
Stud Size42.95 in
Temperature Rating90 deg C
Tongue Size0.76 in W x 0.12 in THK
Tongue TypeStraight
Type2-Hole
Type / Style2-Hole
Voltage Rating35 kV
Documents
Features
- Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Long barrel maximizes number of crimps and provides premium wire pull out strength and electrical performance
- Inspection window to visually assure full conductor insertion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Tin plated to inhibit corrosion
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
Specifications
1-1/2 in L Wire Strip, 1 in Stud Hole Spacing
