Panduit LCAX8-10-L

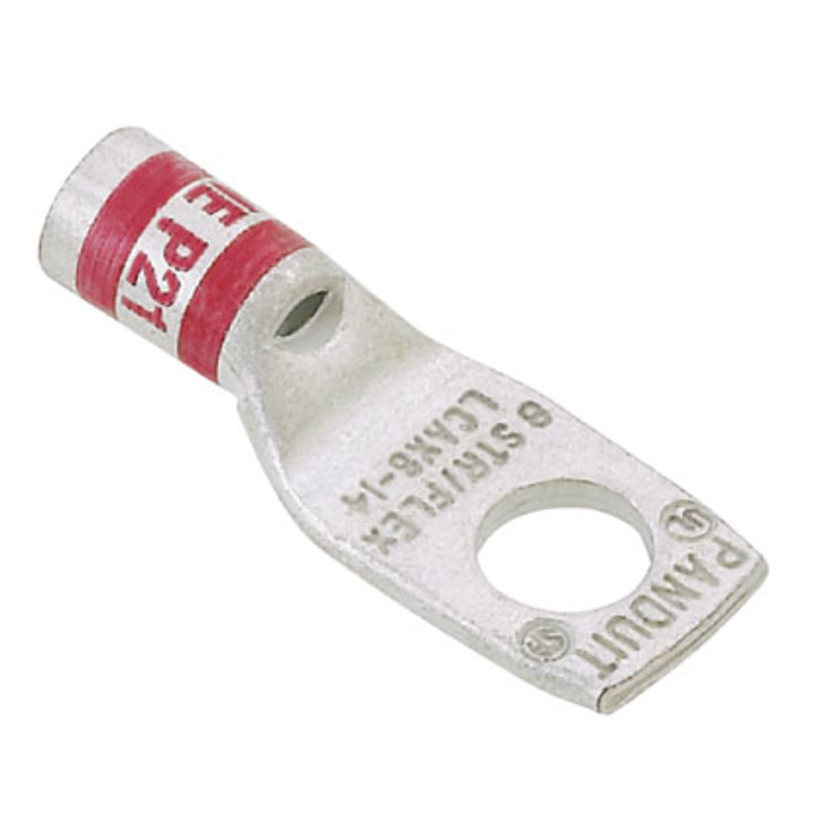

Panduit Pan-Lug LCAX8-10-L 1-Hole Compression Connector Lug, 8 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P21, 0.19 in Stud, Tin Plated Copper
Panduit LCAX8-10-L
Panduit Pan-Lug LCAX8-10-L 1-Hole Compression Connector Lug, 8 AWG Extra-Flexible/Flexible/Stranded Copper Conductor, Die Code: P21, 0.19 in Stud, Tin Plated CopperIn Stock: 254more info
|
BrandPanduit
MFG #LCAX8-10-L
Werner Part #1418574
UPC074983433100
In Stock: 254more info
|
BrandPanduit
MFG #LCAX8-10-L
Werner Part #1418574
UPC074983433100
Product Description
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCAX, Extra-Flexible/Flexible/Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 0.19 in Stud, Straight Tongue, 0.41 in W x 0.08 in THK Tongue, 1.11 in Overall Length, Standard Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, 1/2 in L Wire Strip, 90 deg C, 42.767 in Mounting Hole, Tin Plated Copper, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.18 in ID x 0.27 in OD x 0.42 in L
Barrel TypeStandard
ColorRed
Conductor size8 AWG
Conductor TypeExtra-Flexible/Flexible/Stranded Copper
Country of OriginMX
Die CodeP21
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type42.767 in
Overall Length1.11 in
SeriesLCAX
Stud Size0.19 in
Temperature Rating90 deg C
Tongue Size0.41 in W x 0.08 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Applications
For providing permanent terminations for a variety of power and grounding applications
Features
- Color-coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- For use with flexible copper conductors
- 8 AWG class B, C, G, H, I, K, M and DLO conductor
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- UL Listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
Specifications
1/2 in L Wire Strip
