Panduit LCAN250-38-X

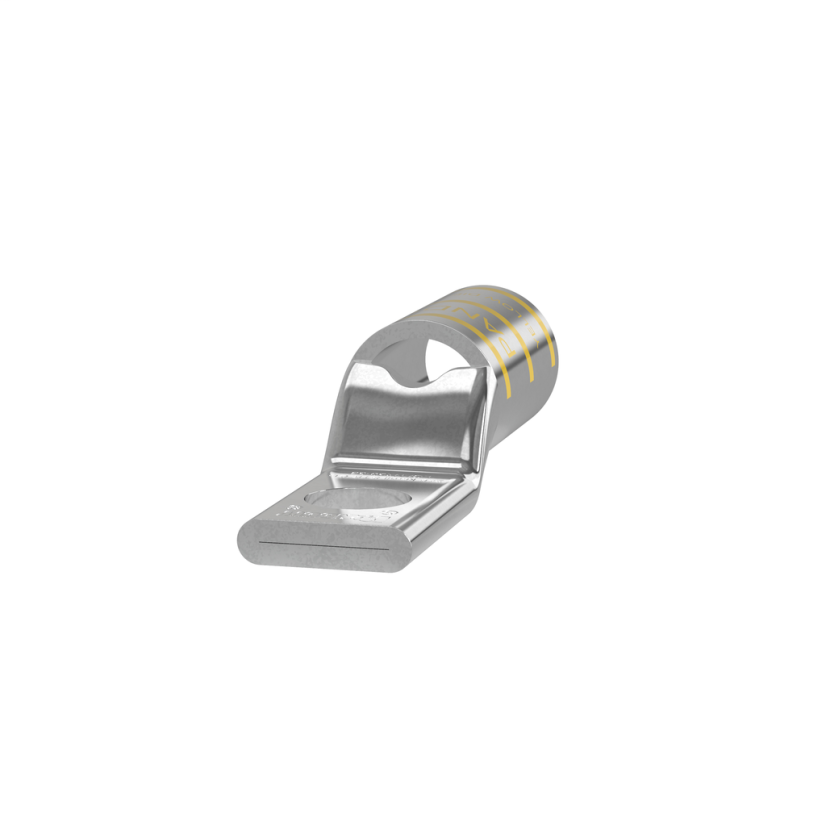

Panduit Pan-Lug LCAN250-38-X 1-Hole Compression Lug Connector With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: P62, 3/8 in Stud, Tin Plated Copper
Panduit LCAN250-38-X
Panduit Pan-Lug LCAN250-38-X 1-Hole Compression Lug Connector With Inspection Window, 250 kcmil Stranded Copper Conductor, Die Code: P62, 3/8 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCAN250-38-X
Werner Part #1101947
UPC074983603428
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCAN250-38-X
Werner Part #1101947
UPC074983603428
Product Description
Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCAN, Stranded Copper Conductor, 250 kcmil Conductor, Die Code: P62, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.77 in W x 0.15 in THK Tongue, 2.55 in Overall Length, Standard/Inspection Window Barrel, 0.63 in ID x 0.77 in OD x 1.25 in L Barrel, Specifications: 1-5/16 in L Wire Strip, Tin Plated, 90 deg C, 1-5/16 in Mounting Hole, Tin Plated Copper, Yellow
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.63 in ID x 0.77 in OD x 1.25 in L
Barrel TypeStandard/Inspection Window
ColorYellow
Conductor size250 kcmil
Conductor TypeStranded Copper
Country of OriginMX
Die CodeP62
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-5/16 in
Overall Length2.55 in
Package Height3.45 IN
Package Length4.7 IN
Package Volume89579.5 cu-in
Package Weight1.25 lb
Package Width3.45 IN
SeriesLCAN
Stud Size3/8 in
Temperature Rating90 deg C
Tongue Size0.77 in W x 0.15 in THK
Tongue TypeNarrow/Straight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Applications
For use with stranded copper conductors applications
Features
- Narrow tongue width for limited space application
- color-coded barrel marked with Panduit and specified competitor die index numbers for proper crimp die selection
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- Tin-plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Specifications
1-5/16 in L Wire Strip, Tin Plated
