Panduit LCA350-38F-X

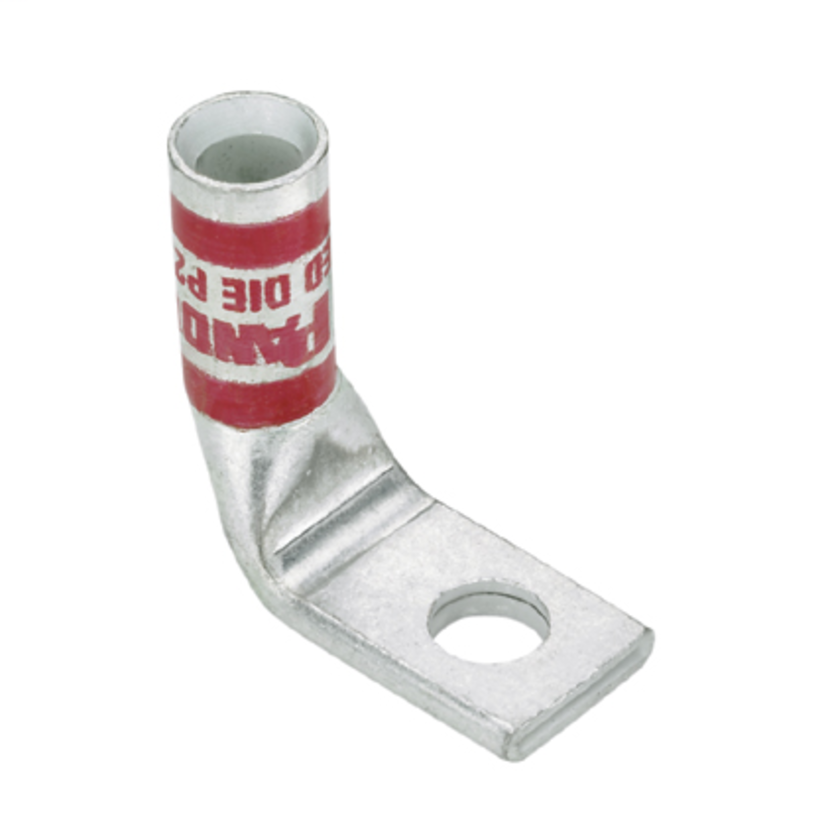

Panduit Pan-Lug LCA350-38F-X 1-Hole Compression Connector Lug, 350 kcmil Stranded Copper Conductor, Die Code: P71, 42.95 in Stud, Tin Plated Copper
Panduit LCA350-38F-X
Panduit Pan-Lug LCA350-38F-X 1-Hole Compression Connector Lug, 350 kcmil Stranded Copper Conductor, Die Code: P71, 42.95 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA350-38F-X
Werner Part #4037073
UPC074983869671
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #LCA350-38F-X
Werner Part #4037073
UPC074983869671
Product Description
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LCA, Stranded Copper Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 42.95 in Stud, 90 deg Tongue, 1.28 in W x 0.17 in THK Tongue, 2.13 in Overall Length, Standard Barrel, 0.7 in ID x 0.88 in OD x 1.44 in L Barrel, 1-1/2 in L Wire Strip, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.7 in ID x 0.88 in OD x 1.44 in L
Barrel TypeStandard
ColorRed
Conductor size350 kcmil
Conductor TypeStranded Copper
Country of OriginMX
Die CodeP71
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-1/2 in
Overall Length2.13 in
Package Height3.3 in
Package Length5.8 in
Package Volume65.66 cu-in
Package Weight2.5 lb
Package Width3.4 in
SeriesLCA
Stud Size42.95 in
Temperature Rating90 deg C
Tongue Size1.28 in W x 0.17 in THK
Tongue Type90 deg
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Applications
For providing permanent terminations for a variety of power and grounding applications
Features
- Color coded bands for proper die selection and crimp placement
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
Specifications
1-1/2 in L Wire Strip
