Panduit LCA350-38-X

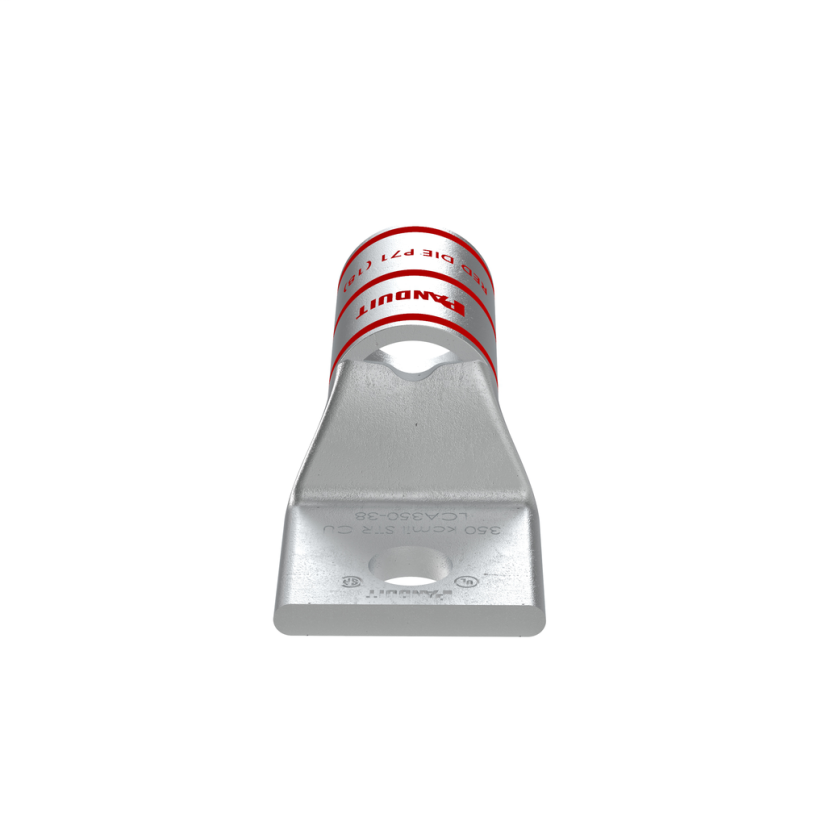

Panduit Pan-Lug LCA350-38-X 1-Hole Compression Lug Connector With Inspection Window, 350 kcmil Copper/Stranded Conductor, Die Code: P71, 3/8 in Stud, Tin Plated Copper
Panduit LCA350-38-X
Panduit Pan-Lug LCA350-38-X 1-Hole Compression Lug Connector With Inspection Window, 350 kcmil Copper/Stranded Conductor, Die Code: P71, 3/8 in Stud, Tin Plated CopperIn Stock: 35more info
|
BrandPanduit
MFG #LCA350-38-X
Werner Part #1069987
UPC074983719389
In Stock: 35more info
|
BrandPanduit
MFG #LCA350-38-X
Werner Part #1069987
UPC074983719389
Product Description
Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCA, Copper/Stranded Conductor, 350 kcmil Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 2.98 in Overall Length, Standard/Inspection Window Barrel, 0.7 in ID x 0.88 in OD x 1.44 in L Barrel, Specifications: 1-1/2 in L Wire Strip, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Tin Plated Copper, Red
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.7 in ID x 0.88 in OD x 1.44 in L
Barrel TypeStandard/Inspection Window
ColorRed
Conductor size350 kcmil
Conductor TypeCopper/Stranded
Country of OriginMX
Die CodeP71
ManufacturerPanduit
MaterialTin Plated Copper
Mounting Hole Type1-1/2 in
Overall Length2.98 in
Package Height3.6 IN
Package Length4.75 in
Package Volume98537.5 cu-in
Package Weight2.1 lb
Package Width3.35 in
SeriesLCA
Stud Size3/8 in
Temperature Rating90 deg C
Tongue Size1.28 in W x 0.17 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Applications
For use to provide permanent terminations for a variety of power and grounding applications
Features
- Color-coded bands for proper die selection and crimp placement
- An inspection window aids to visually assure full conductor insertion and the tin-plate material helps to inhibit corrosion
- Tin-plated to inhibit corrosion
- Consult cable manufacturer for voltage stress relief instructions with application greater than 2000 V
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- UL Listed and CSA Certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
Specifications
1-1/2 in L Wire Strip, Tin Plated
