Panduit LCA1-38-E

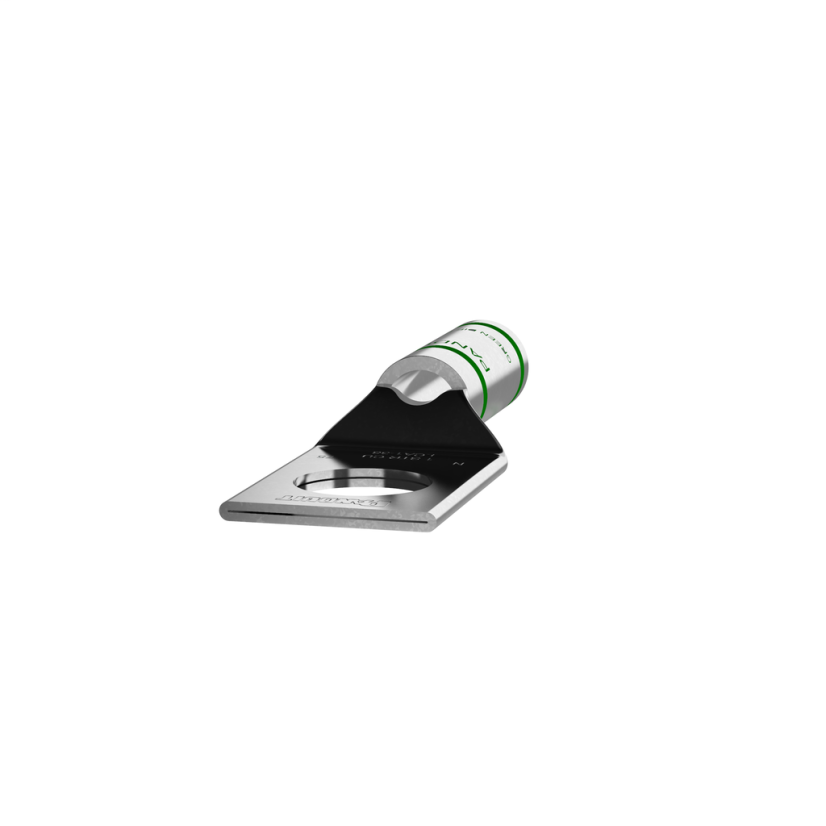

Panduit Pan-Lug LCA1-38-E 1-Hole Compression Lug Connector With Inspection Window, 1 AWG Copper/Stranded Conductor, Die Code: P37, 3/8 in Stud, Copper
Panduit Pan-Lug LCA1-38-E 1-Hole Compression Lug Connector With Inspection Window, 1 AWG Copper/Stranded Conductor, Die Code: P37, 3/8 in Stud, Copper

Panduit LCA1-38-E

Panduit Pan-Lug LCA1-38-E 1-Hole Compression Lug Connector With Inspection Window, 1 AWG Copper/Stranded Conductor, Die Code: P37, 3/8 in Stud, Copper
In Stock: 169more info
|

BrandPanduit

MFG #LCA1-38-E

Werner Part #54278

UPC074983900213

In Stock: 169more info
|

BrandPanduit

MFG #LCA1-38-E

Werner Part #54278

UPC074983900213

Product Description

Panduit Pan-Lug Compression Lug Connector, 1-Hole, Series: LCA, Copper/Stranded Conductor, 1 AWG Conductor, Die Code: P37, 35 kV, 3/8 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 1.99 in Overall Length, Standard/Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.88 in L Barrel, Specifications: 15/16 in L Wire Strip, Tin Plated, 90 deg C, 15/16 in Mounting Hole, Copper, Green
Attributes
Barrel Size0.36 in ID x 0.47 in OD x 0.88 in L
Barrel TypeStandard/Inspection Window
ColorGreen
Conductor size1 AWG
Conductor TypeCopper/Stranded
Country of OriginMX
Die CodeP37
ManufacturerPanduit
MaterialCopper
Mounting Hole Type15/16 in
Overall Length1.99 in
Package Height3.35 IN
Package Length4.65 IN
Package Volume53747.7 cu-in
Package Weight0.99 lb
Package Width3.35 in
SeriesLCA
Stud Size3/8 in
Temperature Rating90 deg C
Tongue Size0.7 in W x 0.11 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
