Panduit LAA1-14-X

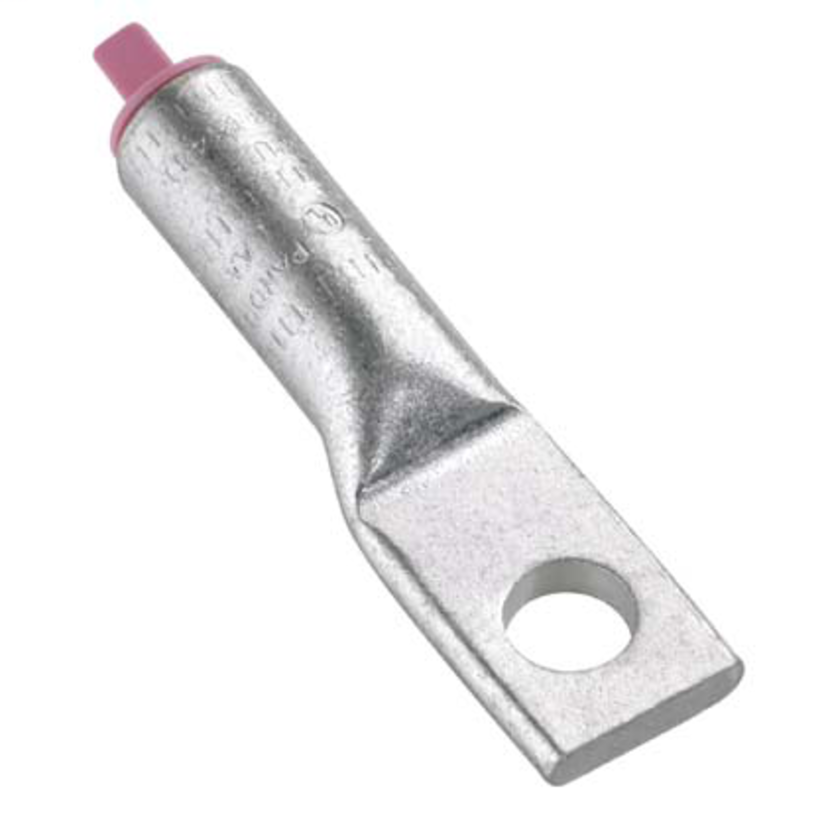

Panduit Pan-Lug LAA1-14-X 1-Hole Compression Connector Lug, 1 AWG Stranded Aluminum/Copper Conductor, Die Code: P45, 42.826 in Stud, Aluminum
Panduit LAA1-14-X
Panduit Pan-Lug LAA1-14-X 1-Hole Compression Connector Lug, 1 AWG Stranded Aluminum/Copper Conductor, Die Code: P45, 42.826 in Stud, AluminumOut of Stockmore info
|
BrandPanduit
MFG #LAA1-14-X
Werner Part #1093545
UPC074983910199
Out of Stockmore info
|
BrandPanduit
MFG #LAA1-14-X
Werner Part #1093545
UPC074983910199
Product Description
Panduit Pan-Lug Compression Connector Lug, 1-Hole, Series: LLA, Stranded Aluminum/Copper Conductor, 1 AWG Conductor, Die Code: P45, 35 kV, 42.826 in Stud, Straight Tongue, 1-1/8 in L x 3/4 in W x 11/64 in THK Tongue, 2.63 in Overall Length, Long/Standard Barrel, 0.35 in ID x 0.53 in OD x 1 in L Barrel, Specifications: 1 in L Wire Strip, Tin Plated Finish, 90 deg C, 1 in Mounting Hole, Aluminum, Gold
Attributes
Documents
Included
Features
Specifications
Attributes
Barrel Size0.35 in ID x 0.53 in OD x 1 in L
Barrel TypeLong/Standard
ColorGold
Conductor size1 AWG
Conductor TypeStranded Aluminum/Copper
Country of OriginItaly
Die CodeP45
ManufacturerPanduit
MaterialAluminum
Mounting Hole Type1 in
Overall Length2.63 in
Package Height3 in
Package Length3 in
Package Volume29859.8 cu-in
Package Weight0.44 lb
Package Width2 in
SeriesLLA
Stud Size42.826 in
Temperature Rating90 deg C
Tongue Size1-1/8 in L x 3/4 in W x 11/64 in THK
Tongue TypeStraight
Type1-Hole
Type / Style1-Hole
Voltage Rating35 kV
Documents
Included
Connector Barrel Pre-Filled with Oxide Inhibiting Joint Compound
Features
- Tin-plated to inhibit corrosion
- Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- For use with stranded aluminum or copper code conductors
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- Manufactured from high conductivity thick wall wrought aluminum
- Factory pre-filled with joint compound and sealed with easy pull out end plug to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
- Tin plated to inhibit corrosion
- UL listed and CSA certified to 35 kV and temperature rated to 90 deg C when crimped with Panduit and specified competitor crimping tools and dies
Specifications
1 in L Wire Strip, Tin Plated Finish
