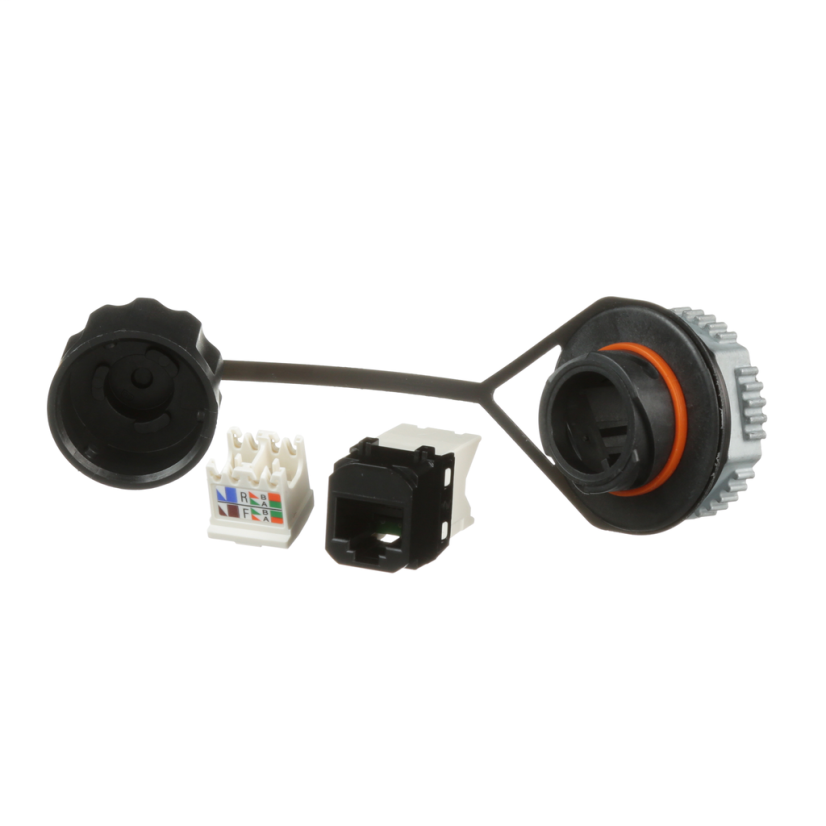

Panduit IAEBH6
Panduit IndustrialNet IAEBH6 8-Position 8-Wire TG Style Unshielded Bulkhead Connector, Cat 6 RJ45/Mini-Com Module, 1 Port, Copper, Black
Panduit IAEBH6
Panduit IndustrialNet IAEBH6 8-Position 8-Wire TG Style Unshielded Bulkhead Connector, Cat 6 RJ45/Mini-Com Module, 1 Port, Copper, BlackIn Stock: 3more info
|
BrandPanduit
MFG #IAEBH6
Werner Part #3941688
UPC074983816033
In Stock: 3more info
|
BrandPanduit
MFG #IAEBH6
Werner Part #3941688
UPC074983816033
Product Description
Panduit IndustrialNet Bulkhead Connector, 8-Position 8-Wire TG Style Unshielded, Cat 6 RJ45/Mini-Com Module, 1 Ports, Copper, Black, 1.49 in W x 1.67 in D x 5.33 in H
Attributes
Documents
Applications
Features
Attributes
ColorBlack
Country of OriginUS
Dimensions1.49 in W x 1.67 in D x 5.33 in H
ManufacturerPanduit
MaterialCopper
Module TypeCat 6 RJ45/Mini-Com
Number of Ports1
Package Height1.65 IN
Package Length4.95 in
Package Volume44789.8 cu-in
Package Weight0.13 lb
Package Width4.2 IN
Type8-Position 8-Wire TG Style Unshielded
Type / Style8-Position 8-Wire RJ45 TG Style Unshielded
Documents
Applications
Metal Processing, Welding and Chemical Batch Processing Applications
Features
- Eliminates the potential for module rotation
- Connector mounting nut holds bulkhead safely and securely from inside of enclosure
- Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 plug or patch cord
- Plug contact plated with 50 micron-in of gold
- Provides positive reinforcement during mated condition rated to 100 mating cycles
- Patented Giga-TX technology optimizes performance by reducing conductor untwist to less than 1/8 in
- Speeds installations and places no impact on critical components for maximum reliability
- Harsh industrial environmental conditions
- The UTP bulkhead connector features a RJ45 jack
- The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water
- It terminates to a four-pair, 24 AWG, 100 Ohm twisted pair cable and does not require a punchdown tool
- The IndustrialNet Cat 6 UTP bulkhead eight-position connector with protective cap is ideal in manufacturing environment
- Bulkhead anti-rotation washer
- Holds bulkhead safely and securely from inside of enclosure
- Robust construction
- Provides positive reinforcement during mated condition, rated to 100 mating cycles
- Maintains IP67/68 seal during unmated connection
- Utilizes patented Giga-TX technology
- Speeds installation and places no impact on critical components for maximum reliability
- Termination cap is color coded for T568A and T568B wiring schemes
