Panduit FSD91-27-Q

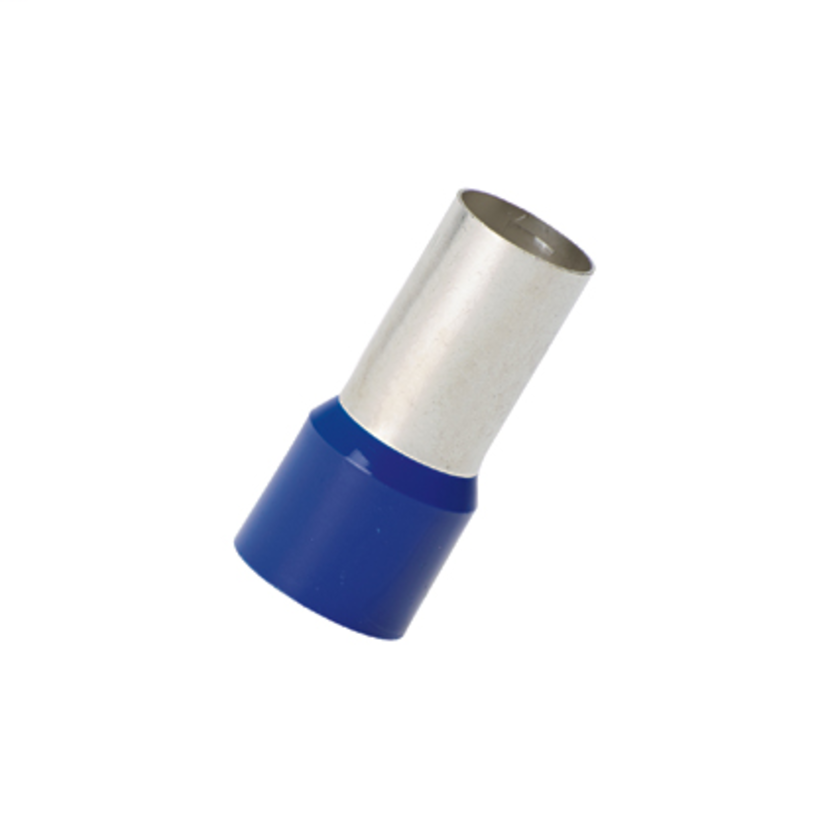

Panduit Pan-Term FSD91-27-Q Type FSD DIN End Sleeve Single Insulated Wire Ferrule, 5/0 AWG Stranded Conductor, 1.89 in L, Copper, Blue
Panduit FSD91-27-Q
Panduit Pan-Term FSD91-27-Q Type FSD DIN End Sleeve Single Insulated Wire Ferrule, 5/0 AWG Stranded Conductor, 1.89 in L, Copper, BlueNon-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #FSD91-27-Q
Werner Part #3994747
UPC074983333721
Non-stock product. Available to order - lead time may vary.
BrandPanduit
MFG #FSD91-27-Q
Werner Part #3994747
UPC074983333721
Product Description
Panduit Pan-Term Wire Ferrule, Type FSD DIN End Sleeve Single Insulated, Stranded Conductor, 5/0 AWG Conductor, 1.89 in Length, Seamless Barrel, 0.66 in ID x 1.06 in L Barrel, Specifications: 1-1/4 in L Wire Strip, 0.83 in Dia Maximum Wire Insulation, Polypropylene Insulation, 1.22 in Mounting Hole, 221 deg F, Copper, Tin Plated, Blue
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.66 in ID x 1.06 in L
Barrel TypeSeamless
ColorBlue
Conductor size5/0 AWG
Conductor TypeStranded
Country of OriginDE
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height1.2 in
Package Length7.4 IN
Package Volume50.11 cu-in
Package Weight0.35 lb
Package Width5.7 in
Temperature Rating221 deg F
TypeType FSD DIN End Sleeve Single Insulated
Type / StyleType FSD DIN End Sleeve Single Insulated
Documents
Applications
For limited space panel applications
Features
- Polypropylene insulation
- Continuously molded design provides consistent placement of ferrules in tool to ensure fast, reliable terminations
- Designed for use with the semi-automatic ferrule crimping tool CT-1000 for medium volume applications
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Specifications
1-1/4 in L Wire Strip, 0.83 in Dia Maximum Wire Insulation, Polypropylene Insulation, 1.22 in Mounting Hole
