Panduit FODRZ12Y

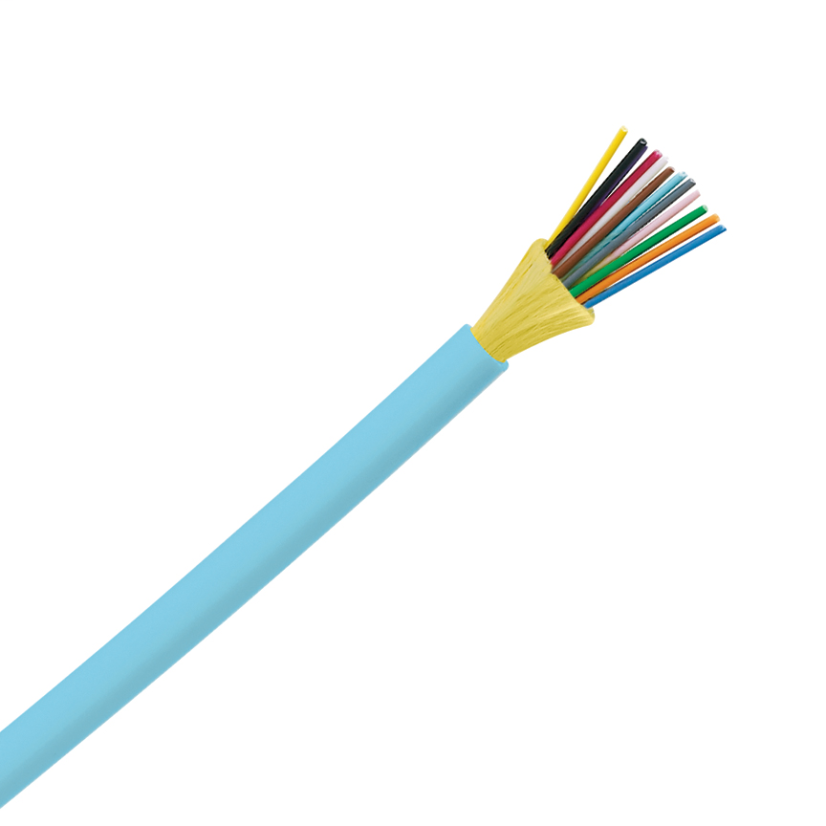

Panduit Opti-Core FODRZ12Y Multi-Mode (OM4) Distribution Cable, 12 Fiber
Panduit FODRZ12Y
Panduit Opti-Core FODRZ12Y Multi-Mode (OM4) Distribution Cable, 12 FiberNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Opti-Core Distribution Cable, Multi-Mode (OM4), 12 Fibers, PVC Jacket, Aqua Jacket, -4 to 158 deg F
Attributes
Documents
Applications
Features
Specifications
Attributes
Attenuation3/1 dB/km
Country of OriginUS
Fiber Count12
Insulation MaterialPVC
Jacket ColorAqua
Jacket MaterialPVC
ManufacturerPanduit
Temperature Rating-4 to 158 deg F
TypeMulti-Mode (OM4)
Documents
Applications
For indoor use in intra-building and horizontal installations
Features
- Sheath markings provide positive identification, quality traceability and length verification
- Cable design and flexible buffer tubes allow for quick breakout and ease of routing
- 900 um standards-based color-coded buffer coating protects fibers during handling and allows for easy identification and stripping
- Opti-Core 10Gig fiber optic cable is designed to support network transmission speeds up to 10 Gb/s for link lengths up to 300 meters for OM3 and up to 550 meters for OM4 with an 850nm source per IEEE 802.3ae 10 GbE standard
- Backward compatible for use with all 50/125um system requirements
- Multimode riser rated distribution cable
- Sheath markings provide positive identification, quality traceability and length verification
- Cable design and flexible buffer tubes allow for quick breakout and ease of routing
- 900 um standards based color coded buffer coating protects fibers during handling and allows for easy identification and stripping
Specifications
Standards/Approvals: UL-1666, NFPA 262, ANSI/ICEA S-83-596, CSA 22.2, Telcordia GR-409, RoHS Compliant
