Panduit F90-32-L

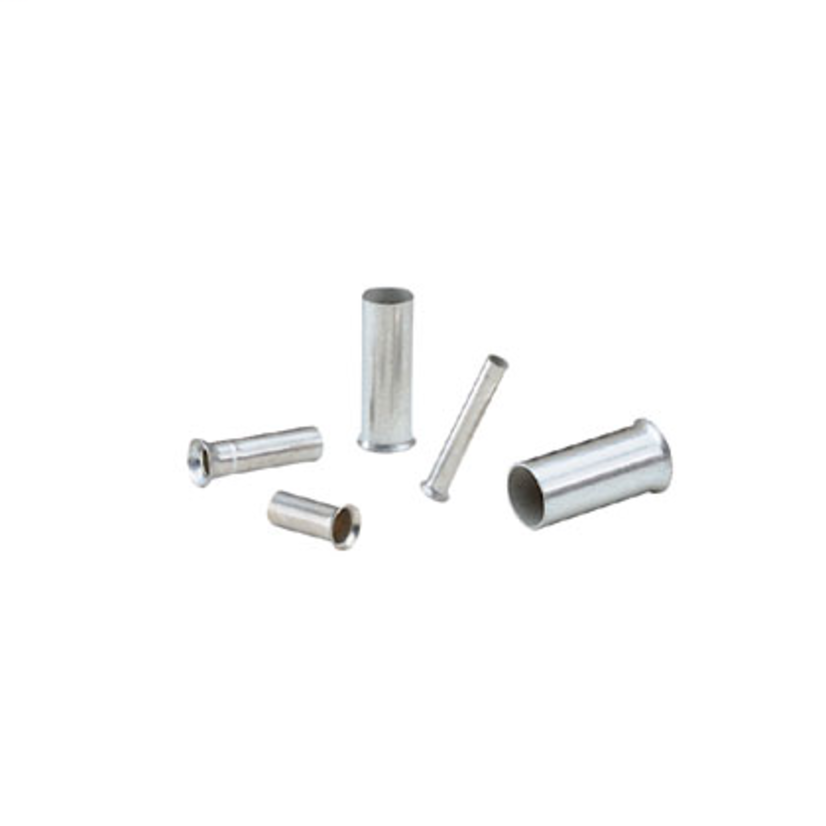

Panduit Pan-Term F90-32-L Non-Insulated Standard Ferrule, 3/0 AWG Stranded Conductor, 32 mm L, Copper, Metallic
Panduit F90-32-L
Panduit Pan-Term F90-32-L Non-Insulated Standard Ferrule, 3/0 AWG Stranded Conductor, 32 mm L, Copper, MetallicIn Stock: 50more info
|
BrandPanduit
MFG #F90-32-L
Werner Part #3994743
UPC074983650996
In Stock: 50more info
|
BrandPanduit
MFG #F90-32-L
Werner Part #3994743
UPC074983650996
Product Description
Panduit Pan-Term Ferrule, Non-Insulated Standard, Series: F Series, Stranded Conductor, 3/0 AWG Conductor, 32 mm Length, Seamless Barrel, 0.67 in OD Barrel, Specifications: 1-1/4 in L Wire Strip, 1.26 in Mounting Hole, 302 deg F, Copper, Tin Plated, Metallic
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.67 in OD
Barrel TypeSeamless
ColorMetallic
Conductor size3/0 AWG
Conductor TypeStranded
Country of OriginDE
FinishTin Plated
ManufacturerPanduit
MaterialCopper
Package Height2.2 IN
Package Length8 in
Package Volume1018220 cu-in
Package Weight0.65 lb
Package Width5.8 in
SeriesF Series
Temperature Rating302 deg F
TypeNon-Insulated Standard
Type / StyleType F Large
Documents
Applications
For limited space panel applications
Features
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Specifications
1-1/4 in L Wire Strip, 1.26 in Mounting Hole
