Panduit F85-12-C

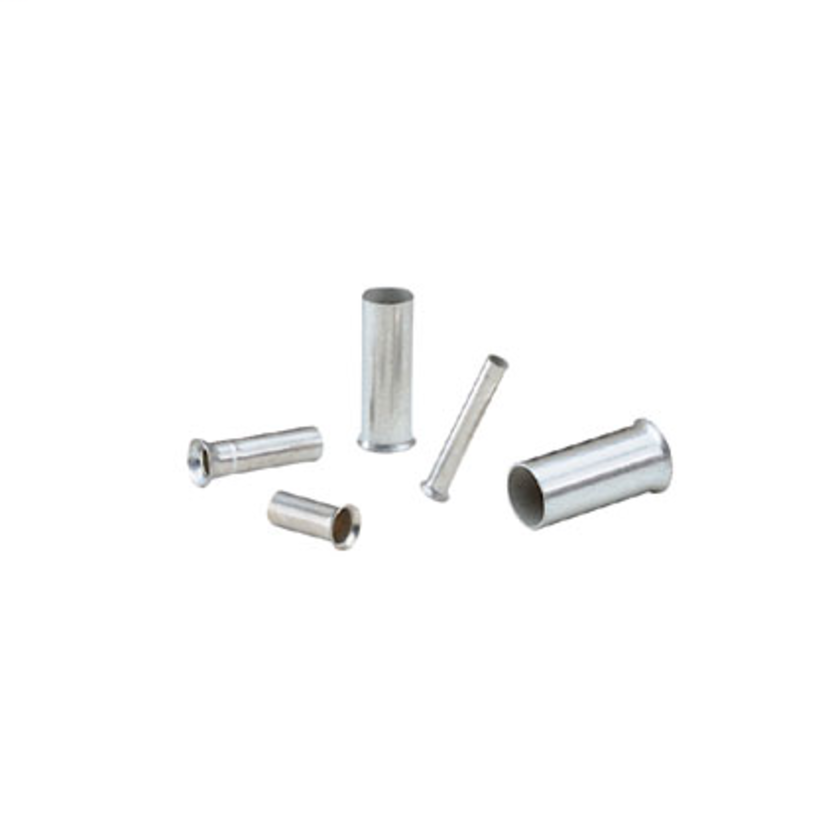

Panduit Pan-Term F85-12-C Non-Insulated Standard Ferrule, 4 AWG Stranded Conductor, 12 mm L, Copper, Metallic
Panduit F85-12-C
Panduit Pan-Term F85-12-C Non-Insulated Standard Ferrule, 4 AWG Stranded Conductor, 12 mm L, Copper, MetallicNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Panduit Pan-Term Ferrule, Non-Insulated Standard, Series: F Series, Stranded Conductor, 4 AWG Conductor, 12 mm Length, Seamless Barrel, 0.37 in OD Barrel, Specifications: 15/32 in L Wire Strip, 0.47 in Mounting Hole, 302 deg F, Copper, Tin Plated, Metallic
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size0.37 in OD
Barrel TypeSeamless
ColorMetallic
Conductor size4 AWG
Conductor TypeStranded
Country of OriginDE
FinishTin Plated
ManufacturerPanduit
MaterialCopper
SeriesF Series
Temperature Rating302 deg F
TypeNon-Insulated Standard
Type / StyleType F Non-Insulated Standard
Documents
Applications
For limited space panel applications
Features
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN standards for twin wire containment
- Funnel entry for faster insertion and lower installed cost
- Designed with a seamless barrel to contain loose wire strands for superior terminations
- Eases insertion of wire into terminal block
- Meets DIN, UL and CSA standards for wire containment
Specifications
15/32 in L Wire Strip, 0.47 in Mounting Hole
