Panduit DRD44WH6

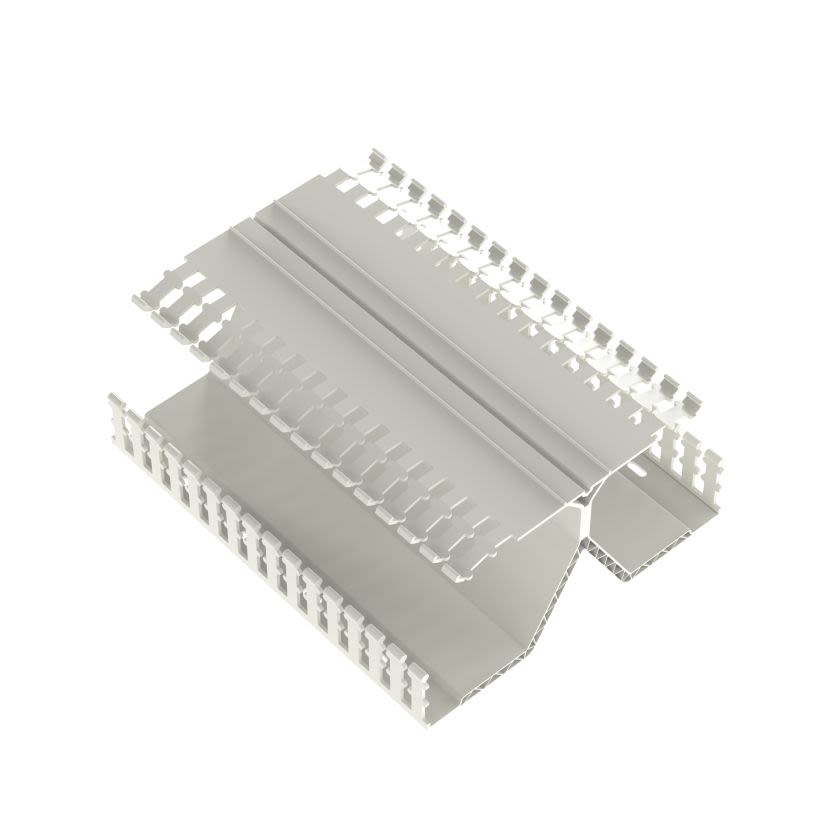

Panduit Panduct PanelMax DRD44WH6 DRD Wiring Duct, 0.31 in Slotted Slot, 8.23 in W x 4.12 in D, PVC
Panduit DRD44WH6
Panduit Panduct PanelMax DRD44WH6 DRD Wiring Duct, 0.31 in Slotted Slot, 8.23 in W x 4.12 in D, PVCOut of Stockmore info
|
BrandPanduit
MFG #DRD44WH6
Werner Part #3828058
UPC074983117116
Out of Stockmore info
|
BrandPanduit
MFG #DRD44WH6
Werner Part #3828058
UPC074983117116
Product Description
Panduit Panduct PanelMax Wiring Duct, Series: DRD, 8.23 in Width, 4.12 in Depth, 6 ft Length, Slotted Slot, 0.31 in Slot, DIN Rail/Hole Mounting, Yes Adhesive Backed, PVC, White
Attributes
Documents
Applications
Included
Features
Attributes
Adhesive BackedYes
ColorWhite
Country of OriginUS
ManufacturerPanduit
MaterialPVC
Mounting TypeDIN Rail/Hole
Package Height4.39 in
Package Length75.69 in
Package Volume3456 cu-in
Package Weight13.65 lb
Package Width8.6 in
SeriesDRD
Slot Size0.31 in
Slot TypeSlotted
Thickness0.1 in
TypeType DRD
Type / StyleType DRD DIN Rail Wiring Duct
Documents
Applications
Creates Valuable Panel Space Savings, Providing Easier Installation and Maintenance and Improving Reliability
Included
Base, Covers and DIN Rail Fasteners
Features
- Space saving design positions DIN rail and components off the panel directly above an integrated wire management channel for up to a 30% smaller footprint for duct and components
- DIN rail and DIN component compatible with standard 35 mm or 15 mm rails and many DIN-rail mount components for design flexibility
- Integrated DIN rail fastening slot allows the DIN rail to mount directly to product with plastic thread cutting screws for up to 40% faster duct and rail installation and reduced labor costs
- Hinged and flexible cover ensures panel integrity, safety and aesthetics
- Platform slots (horizontal) manage wire from channel mounted components, outer sidewall slots (vertical) manage wire from adjacent panel mounted components
- Channel pass through slots allows wires to transition internally between channels to ease wire connections to either side of components mounted on the same rail, minimizing wire length and reducing material cost
- Unique finger and slot progression for optimal wire management and aesthetics
- 2-channel wiring duct with a hinged and flexible cover that allows you to mount DIN rail and components on top of the duct to maximize space
- Up to 30% panel Space savings, up to 25% material cost savings and up to 50% faster installation
- Pass-through holes to shorten the wire path
